Tohoku Univ. Technology ：3D Microcoil Fiber Fabrication Technology：T24-092
Applications: Medical Diagnostics, Microfluidics, Chemical Mixing, Cell Manipulation, etc.

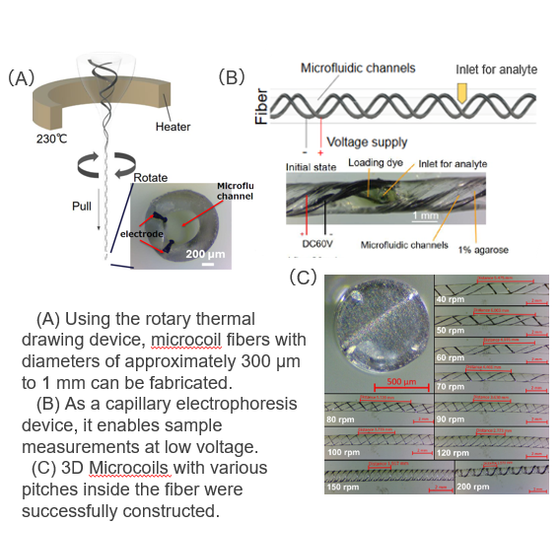

Conventional microfluidic devices are typically fabricated on flat substrates using lithography—a standard semiconductor manufacturing technique. However, this approach is limited by its inability to create three-dimensional or non-planar channel structures, which restricts the functional complexity of the devices. To overcome these limitations, the research team developed a Rotary Thermal Drawing System. This breakthrough equipment enables the production of 3D helical channels and microcoil fibers. Beyond simple fluidics, this technology allows for the integration of electrical components, leading to novel applications such as advanced electrophoresis. Key features of this technology: ・Flexible design is possible: the fiber material (e.g. high‑strength material, elastic materials), diameter size, pitch, shape (liner or spiral), hollow or not, etc. ・Portable size of the equipment: Saving space and easy to handle.
Inquire About This Product
basic information
please contact us or refer to the PDF for more details.
Price range
Delivery Time
Applications/Examples of results
please contact us or refer to the PDF for more details.
