We would like to introduce a case where we manufactured a gasket with a size of 62.5mm square based on the DXF data provided by the customer!

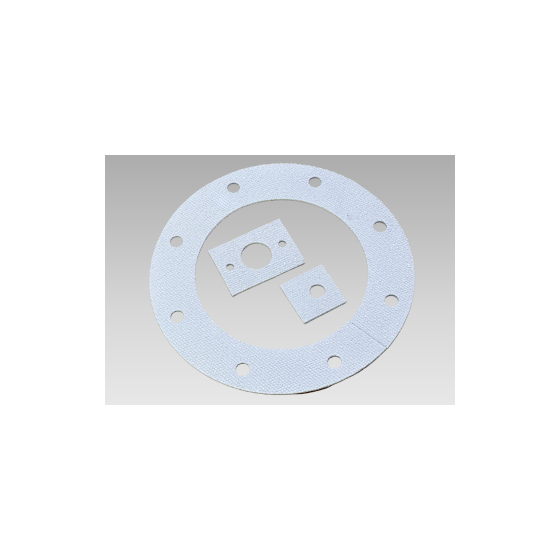

We would like to introduce a case study of water jet processing of our heat-resistant glass cloth "D5400." Based on the DXF data provided by the customer, we manufactured a gasket measuring 62.5mm square from the 3.2mm thick "D5400." Using a water jet cutting machine, we precisely cut the outer shape and inner holes according to the data. Materials like glass cloth, which are soft and prone to fraying, can be finished beautifully when cut with water. [Case Overview] ■ Material: 3.2mm thick heat-resistant glass cloth "D5400" ■ Product: 62.5mm square gasket ■ Work Details - High-precision cutting of the outer shape and inner holes according to the data provided by the customer. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Features of Water Jet Processing】 ■ No need for molds, low cost, and short delivery time ■ Precision processing using DXF data ■ High-quality cutting with no thermal impact ■ Easy repeat ordering with data storage *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
Company information
Daiko is a manufacturer specialized in processing various industrial products, including gaskets and packing. With industry-leading processing equipment, including one of Japan's largest water jet cutting machines, and a wide range of materials such as joint sheets, rubber, resin, and metal, we meet our customers' diverse needs. Leveraging the technology and experience we have cultivated over 50 years, we provide high-quality, short-lead-time, and low-cost products to contribute to solving our customers' challenges. To respond to our customers' varied needs, Daiko's production bases are equipped with various processing facilities. Among them, the water jet cutting machines, with a total of four installed at our Osaka headquarters and Tokyo branch, boast one of the largest scales in the country. The maximum processing range is W4,000 × L5,500 mm, allowing for the high-precision manufacturing of large-diameter gaskets and packing. By maximizing material efficiency, we achieve the provision of 'high quality at low cost.'
