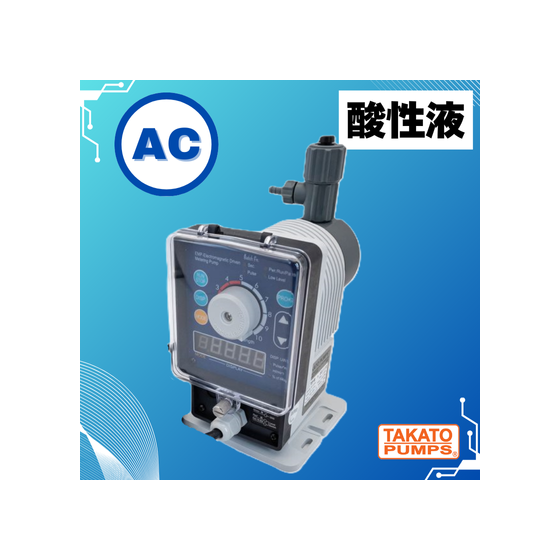

AC Model TSP Pump for Acidic Liquid in Chemical Plants
Solenoid-driven quantitative diaphragm pump TSP series AC type
Corrosion prevention in acidic environments. Achieving precise chemical injection.
In the chemical plant industry, corrosion prevention measures are essential for ensuring the long-term operation and safety of equipment. Particularly in acidic environments, metal components are prone to corrosion, which can lead to equipment degradation and shutdowns. It is necessary to accurately inject the appropriate amount of chemical solution to suppress corrosion. Our acid-resistant TSP pump AC model uses materials with excellent corrosion resistance and achieves precise chemical injection, contributing to the protection of plant equipment. 【Usage Scenarios】 - Chemical manufacturing plants - Wastewater treatment facilities - Metal surface treatment processes 【Benefits of Implementation】 - Extended equipment lifespan - Reduced maintenance costs - Improved safety
Inquire About This Product
basic information
【Features】 - A corrosion-resistant resin pump capable of transferring various chemicals. - Adopts a solenoid drive system ideal for accurately dispensing small quantities. - Waterproof performance equivalent to IP65, suitable for outdoor use. - Compatible with power supplies ranging from 100 to 240V. - Features a user-friendly digital display. 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small amounts using a solenoid-driven method.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge rate: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (no freezing) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Liquid transfer temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
