Acidic Liquid Compatible TSP Pump for Plating - AC Model

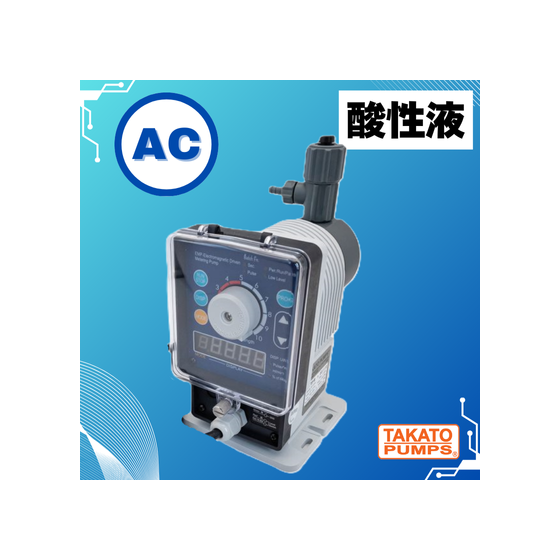

Solenoid-driven quantitative diaphragm pump TSP series AC type
For the injection of electrolyte in the plating process. A diaphragm pump with excellent corrosion resistance.
In the plating industry, the precise injection of electrolyte solution affects product quality. Particularly in processes that use highly acidic electrolyte solutions, the corrosion resistance of the pump is crucial. Using an inappropriate pump can lead to liquid leaks or pump failures, potentially resulting in decreased production efficiency and increased costs. Our TSP pump, designed for acidic liquids, utilizes materials with excellent corrosion resistance to achieve accurate and precise injection of electrolyte solutions. 【Usage Scenarios】 - Supply of electrolyte solutions in plating processes - Processes that use highly acidic chemicals 【Benefits of Implementation】 - Improved product quality through accurate injection of electrolyte solutions - Reduced maintenance costs due to longer pump lifespan - Capability for outdoor installation with IP65 equivalent waterproof performance
Inquire About This Product
basic information
**Features** - A corrosion-resistant resin pump capable of transferring various chemicals - Ideal solenoid drive system for accurately delivering small quantities - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with power supplies ranging from 100 to 240V - User-friendly with a digital display **Our Strengths** We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge rate: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Pumped liquid temperature: 0 to 40°C (must not freeze) Material: (contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
