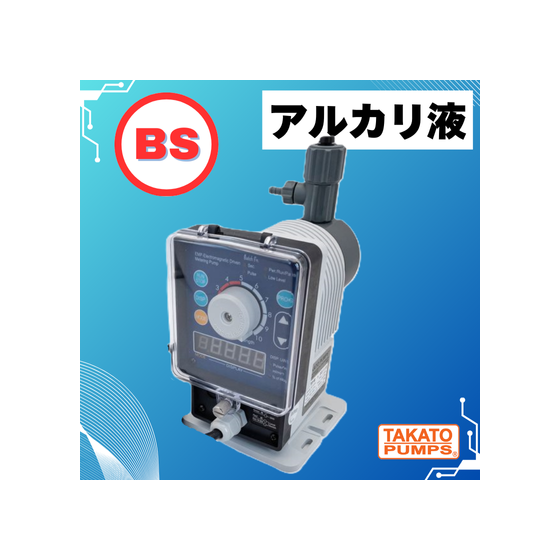

Alkaline Liquid Compatible TSP Pump BS Model for Chemical Reactions
Solenoid-driven quantitative diaphragm pump TSP series BS type
For the precise injection of trace amounts of alkaline solution. A diaphragm pump with excellent corrosion resistance.
In the chemical industry’s reaction processes, the precise injection of chemicals is essential to ensure product quality and safety. This is particularly important when handling alkaline chemicals, as the pump's corrosion resistance becomes critical. Using an inappropriate pump can lead to chemical leaks and pump deterioration, potentially resulting in decreased production efficiency and safety risks. The alkaline liquid-compatible TSP pump BS model utilizes materials with excellent corrosion resistance and employs a solenoid-driven method that allows for precise metering injection. 【Usage Scenarios】 * Addition of chemicals in chemical reaction processes * pH adjustment * Injection of catalysts 【Benefits of Implementation】 * Improved reaction efficiency through accurate chemical injection * Extended pump lifespan due to corrosion resistance * Enhanced safety
Inquire About This Product
basic information
**Features** * Excellent corrosion resistance resin pump * Ideal solenoid drive system for accurately delivering small amounts * Waterproof performance equivalent to IP65, suitable for outdoor use * Compatible with power supply of 100-240V * Improved operability with digital display **Our Strengths** We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A resin pump with excellent corrosion resistance that can transport various chemicals. The solenoid-driven system is ideal for accurately delivering small quantities.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge rate: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Pumped liquid temperature: 0 to 40°C (must not freeze) Material: (wet parts) PVC / (diaphragm) PTFE / (gasket) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Pumped viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (wet part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Liquid transfer temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
