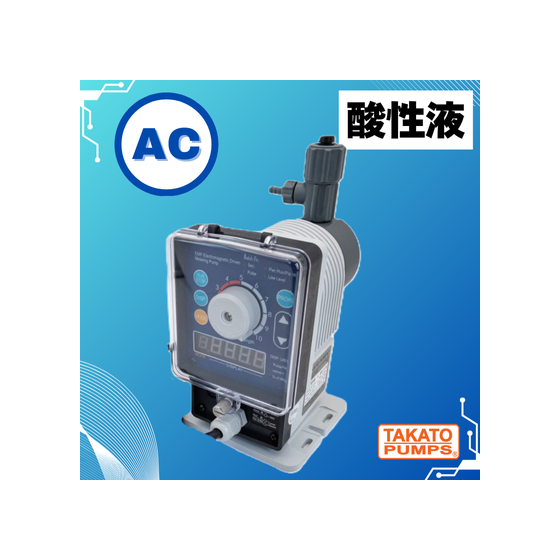

[For Research Institutions] Acidic Liquid Compatible TSP Pump AC Model
Solenoid-driven quantitative diaphragm pump TSP series AC type
For experiments with acidic solutions. Achieving corrosion resistance and trace quantitative injection.
In experiments conducted at research institutions, the precise injection of chemicals influences the experimental results. This is especially important when handling acidic solutions, where the corrosion resistance of the pump is crucial. Additionally, the ability to accurately inject small quantities of chemicals is required. Our acidic liquid-compatible TSP pump AC model uses materials with excellent corrosion resistance and achieves precise micro-injection through a solenoid drive system. This contributes to the improvement of reproducibility and accuracy in experiments. 【Usage Scenarios】 - Chemical experiments - Analytical experiments - Reagent preparation 【Benefits of Implementation】 - Improved experimental accuracy - Reduced waste of chemicals - Enhanced safety
Inquire About This Product
basic information
【Features】 - Resin pump with excellent corrosion resistance - Solenoid drive system ideal for precise micro-injection - Waterproof performance equivalent to IP65 - Compatible with power supply of 100-240V - Digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A resin pump with excellent corrosion resistance that can transport various chemicals. Ideal for accurately delivering small quantities using a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (no freezing) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge rate: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transport liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge rate: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
catalog（5）
Download All Catalogs
Company information
We are engaged in the manufacturing and sales of industrial machinery and urea water production equipment.
