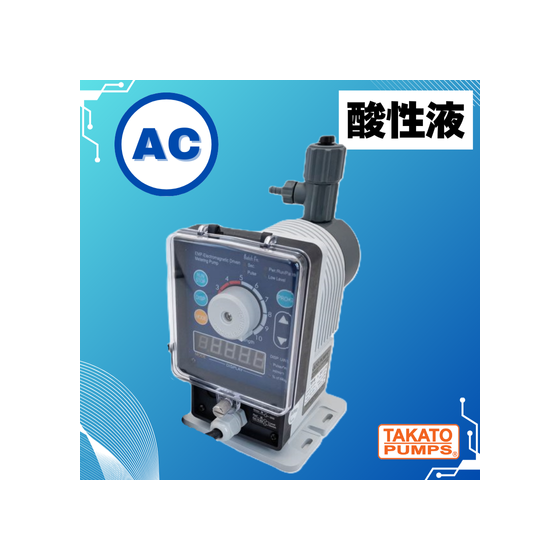

Acidic Liquid Compatible TSP Pump AC Model for Agriculture
Solenoid-driven quantitative diaphragm pump TSP series AC type
Diaphragm pump that balances the efficiency and safety of pesticide application.
In the agricultural sector, pesticide application is essential to protect crop growth. However, some types of pesticides have high acidity, which poses a risk of corrosion and malfunction of the pumps used. Additionally, accurately adjusting the amount of pesticide is crucial for achieving effective pest control while reducing costs. The Acidic Liquid Compatible TSP Pump AC Model addresses these challenges by using materials with excellent corrosion resistance and ensuring precise chemical supply. 【Usage Scenarios】 - Quantitative pesticide application - Application of acidic pesticides - Chemical supply in greenhouses and house cultivation 【Benefits of Implementation】 - Increased pump lifespan - Improved efficiency of pesticide application - Cost reduction
Inquire About This Product
basic information
【Features】 - Corrosion-resistant resin pump - Solenoid-driven system for precise small volume delivery - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with 100-240V power supply - Digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge rate: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transport liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
