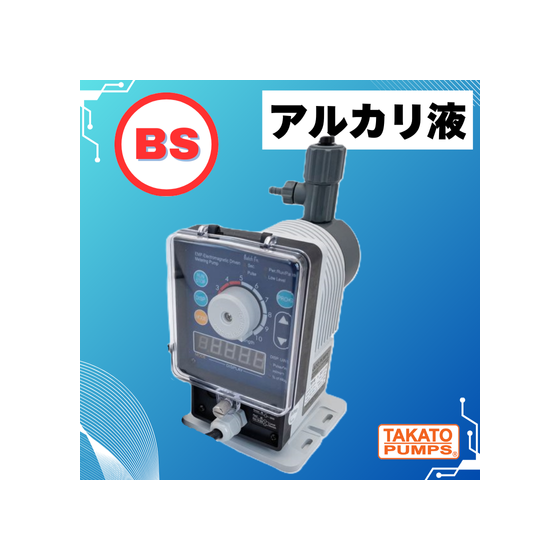

Alkaline Liquid Compatible TSP Pump BS Model for Water Treatment
Solenoid-driven quantitative diaphragm pump TSP series BS type
For pH adjustment of alkaline chemicals. A diaphragm pump that achieves accurate micro-injection.
In the water treatment industry, pH adjustment is a very important factor in water quality management. Accurately injecting alkaline chemicals is essential for stabilizing water quality and improving treatment efficiency. Improper pH adjustment can lead to disruptions in the treatment process and corrosion of equipment. The alkaline liquid-compatible TSP pump BS model uses materials with excellent corrosion resistance and can accurately inject the alkaline chemicals necessary for pH adjustment. 【Application Scenarios】 - pH adjustment in wastewater treatment facilities - Water quality management in building maintenance - pH adjustment in food factories 【Benefits of Implementation】 - Optimization of pH control through accurate chemical injection - Reduction of equipment corrosion risk - Improvement of treatment efficiency through stable water quality management
Inquire About This Product
basic information
【Features】 - Resin pump with excellent corrosion resistance - Solenoid drive system ideal for accurately delivering small quantities - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with power supplies of 100-240V - Improved operability with digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price: TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transporting various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge capacity: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side / suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side / suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge rate: 200mL/min Maximum discharge pressure: 0.35MPa Rated voltage: AC100V～240V single phase Frequency: 50/60Hz Transfer liquid temperature: 0～40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1～200 times/min Stroke length: 0.0～1.0mm Transferable viscosity: 100mPa·s |
