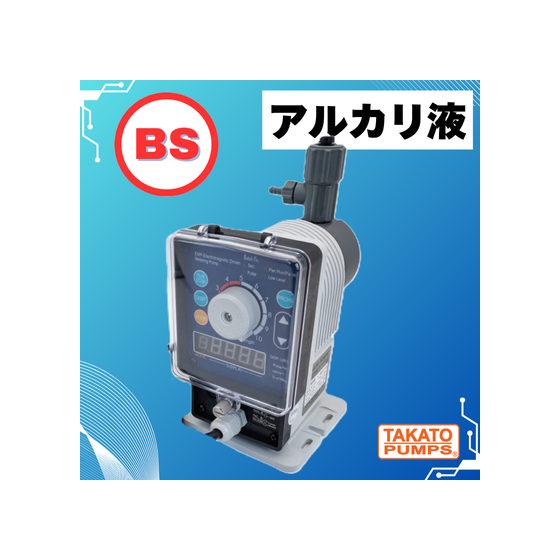

Alkaline Liquid Compatible TSP Pump BS Model for Agriculture
Solenoid-driven quantitative diaphragm pump TSP series BS type
A diaphragm pump with excellent chemical resistance that contributes to the efficiency of pesticide application.
In the agricultural sector, the precise application of pesticides significantly affects crop growth and yield. Particularly when using alkaline pesticides, the corrosion resistance of the pump becomes crucial. Using an inappropriate pump can lead to chemical leaks or pump failures, potentially causing work interruptions and increased costs. The alkaline liquid-compatible TSP pump BS model is made from materials with excellent corrosion resistance, making it ideal for transferring alkaline pesticides. 【Usage Scenarios】 - Precise injection of pesticides - Mixing of liquid fertilizers - Spraying in greenhouses and house cultivation 【Benefits of Implementation】 - Improved accuracy in pesticide application - Extended pump lifespan - Enhanced work efficiency
Inquire About This Product
basic information
【Features】 - Resin pump with excellent corrosion resistance - Solenoid drive system for precise delivery of small amounts - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with power supply of 100-240V - Operability with digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid-driven mechanism.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (no freezing) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side / suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
