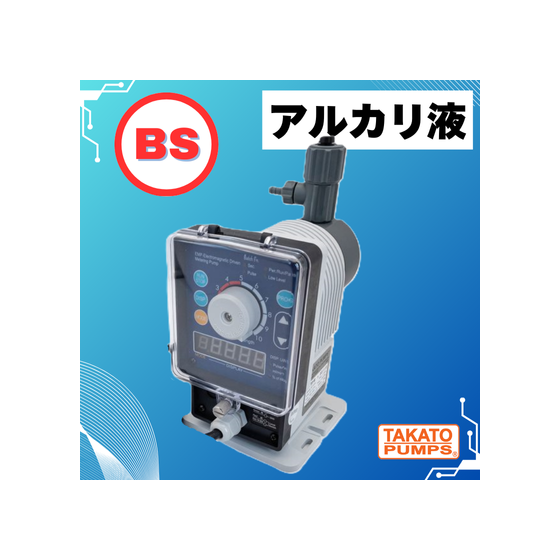

TSP Pump BS Model for Alkali Liquid Compatible with Fiber Dyeing
Solenoid-driven quantitative diaphragm pump TSP series BS type
Accurate injection of alkaline chemicals. Improved quality and efficiency of dyeing.
In the textile dyeing industry, the precise injection of alkaline chemicals such as dyes and auxiliaries is a crucial factor that affects the quality of dyeing. Particularly, accurate quantitative supply of chemicals is essential to ensure color uniformity and prevent color variations. Improper injection can lead to a decline in product quality and unnecessary cost increases. The alkaline liquid-compatible TSP pump BS model is made from highly corrosion-resistant materials, making it ideal for the transfer of alkaline chemicals. Its solenoid-driven mechanism allows for precise delivery of small amounts, and the digital display enhances usability, contributing to improved dyeing quality. 【Application Scenarios】 * Injection of dyes and auxiliaries in the dyeing process * Pre-treatment processes using alkaline chemicals * Chemical injection in wastewater treatment facilities 【Benefits of Implementation】 * Improved dyeing quality (reduction of color variations and enhancement of uniformity) * Cost reduction through optimization of chemical usage * Assurance of stable productivity
Inquire About This Product
basic information
**Features** * Excellent corrosion resistance resin pump * Solenoid drive system for precise small volume delivery * Waterproof performance equivalent to IP65, suitable for outdoor use * Compatible with power supply of 100–240V * User-friendly digital display **Our Strengths** We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small amounts using a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Fluid temperature: 0 to 40℃ (must not freeze) Material: (wet part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
