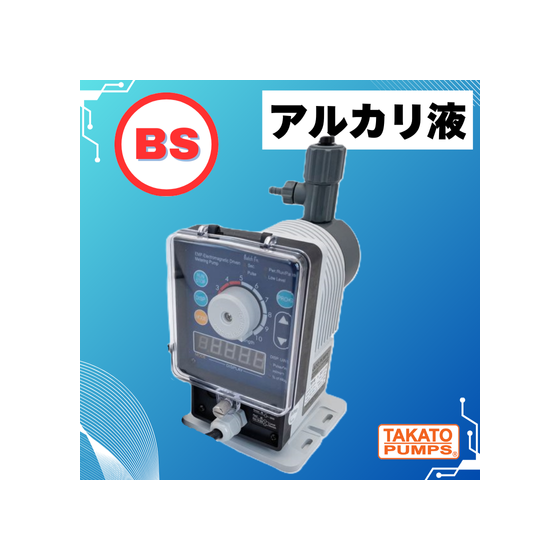

Alkaline Liquid Compatible TSP Pump BS Model for Pharmaceuticals
Solenoid-driven quantitative diaphragm pump TSP series BS type
For the micro-quantitative injection of alkaline reagents. A diaphragm pump with excellent corrosion resistance.
In the pharmaceutical industry, the precise injection of reagents is a crucial factor that affects product quality. Alkaline reagents, in particular, are highly corrosive, requiring pumps with high chemical resistance. The use of inappropriate pumps can lead to contamination of the reagents or equipment failure. The alkaline liquid-compatible TSP pump BS model uses materials with excellent corrosion resistance, making it ideal for the precise quantitative injection of alkaline reagents. 【Application Scenarios】 - Reagent formulation - Supply to analytical instruments - Quality control 【Benefits of Implementation】 - Improved quality through accurate injection of reagents - Cost reduction due to longer pump lifespan - Increased productivity through stable supply
Inquire About This Product
basic information
【Features】 - Resin pump with excellent corrosion resistance - Solenoid drive system ideal for accurately delivering small volumes - Waterproof performance equivalent to IP65, suitable for outdoor use - Compatible with power supplies from 100 to 240V - Operability with digital display 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side / suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge rate: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Fluid temperature: 0 to 40℃ (must not freeze) Material: (wet parts) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
