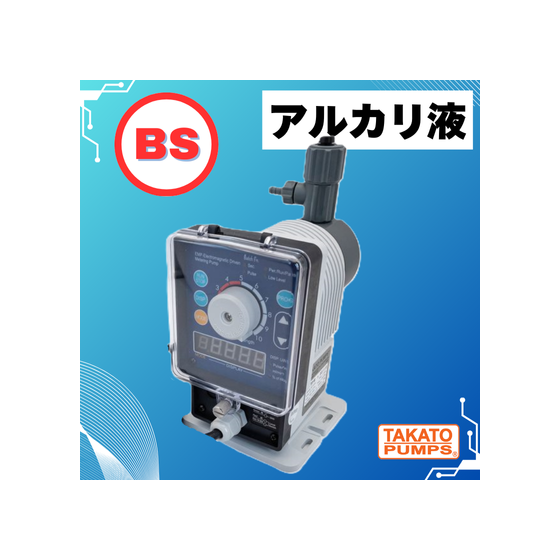

Alkaline Liquid Compatible TSP Pump BS Model for Cosmetic Ingredients
Solenoid-driven quantitative diaphragm pump TSP series BS type
For the accurate transfer of cosmetic ingredients. Achieving corrosion resistance and precise micro-injection.
In the cosmetics industry, precise formulation and transfer of raw materials are essential to maintain product quality. This is particularly important when handling alkaline raw materials, as the corrosion resistance of pumps is crucial. Using inappropriate pumps can lead to the deterioration of raw materials and a decline in product quality. The alkaline liquid-compatible TSP pump BS model employs materials with excellent corrosion resistance and utilizes a solenoid-driven method that allows for precise micro-injection. This ensures accurate transfer while maintaining the quality of cosmetic raw materials. 【Application Scenarios】 * Formulation of cosmetic raw materials * Transfer of alkaline raw materials * Micro-injection in research and development 【Benefits of Implementation】 * Maintenance of raw material quality * Improved product stability through accurate formulation * Reduction of waste in raw materials
Inquire About This Product
basic information
**Features** * Excellent corrosion-resistant resin pump * Ideal solenoid drive system for accurately delivering small amounts * Waterproof performance equivalent to IP65, suitable for outdoor use * Compatible with power supplies from 100 to 240V * User-friendly digital display **Our Strengths** We manufacture and sell industrial equipment and urea water production systems. We provide products tailored to our customers' needs and contribute to solving their challenges.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small amounts using a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Liquid transfer temperature: 0 to 40°C (must not freeze) Material: (wet part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40℃ (no freezing) Material: (wet part) PVC / (diaphragm) PTFE / (gasket) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
