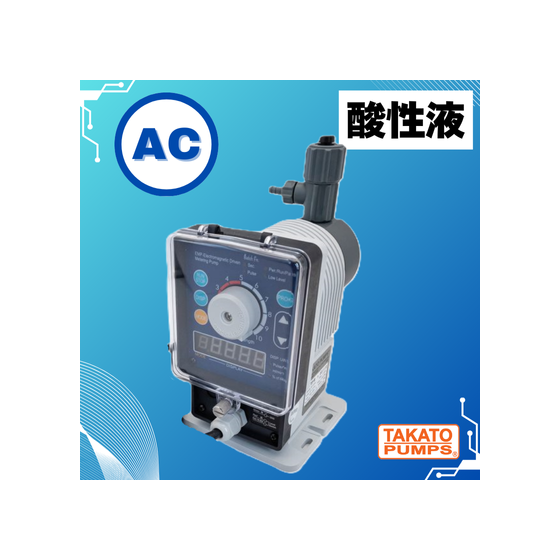

AC Model TSP Pump for Acidic Liquid Applications in Fuel Cells
Solenoid-driven quantitative diaphragm pump TSP series AC type
Micro-quantitative injection of acidic liquid in fuel cell systems.
In the fuel cell industry, precise injection of acidic liquids is required to enhance durability and efficiency. In particular, appropriate supply of acidic liquids is essential to maintain the performance of fuel cells. Improper injection can lead to system failures and performance degradation. Our acidic liquid-compatible TSP pump AC model employs materials with excellent corrosion resistance and utilizes a solenoid drive method that is optimal for accurately delivering small amounts of acidic liquid. 【Usage Scenarios】 - Supply of acidic liquids for fuel cell systems - Micro-injection of acidic liquids in research and development - Quantitative supply of acidic liquids on manufacturing lines 【Benefits of Implementation】 - Maintenance of fuel cell system performance through accurate injection of acidic liquids - Extended lifespan due to corrosion resistance - Improved operability through digital display
Inquire About This Product
basic information
**Features** - A corrosion-resistant resin pump capable of transferring various chemicals. - Utilizes a solenoid drive system ideal for accurately dispensing small quantities. - Waterproof performance equivalent to IP65, suitable for outdoor use. - Compatible with power supplies ranging from 100 to 240V. - Features an easy-to-use digital display. **Our Strengths** We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-AC-S: ¥80,000-
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small quantities with a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-AC-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Pumped liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
| TSP-100-AC-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 0.7 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transport liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
| TSP-200-AC-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transport liquid temperature: 0 to 40℃ (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) VITON Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
