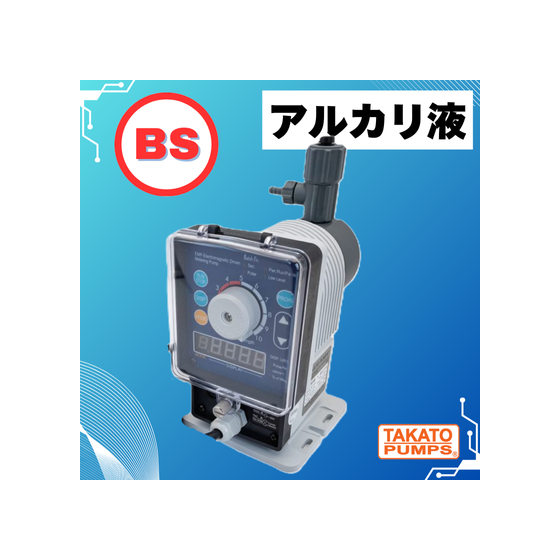

Alkaline Liquid Compatible TSP Pump BS Model for Battery Manufacturing
Solenoid-driven quantitative diaphragm pump TSP series BS type
Accurate injection of alkaline electrolyte. Contributes to the improvement of battery manufacturing quality.
In the battery manufacturing industry, the precise injection of electrolyte significantly affects product performance and safety. Particularly in the production of batteries using alkaline electrolytes, corrosion resistance and precise micro-injection are required. Improper injection can lead to decreased battery performance and shortened lifespan. Our alkaline liquid-compatible TSP pump BS model utilizes materials with excellent corrosion resistance and employs a solenoid-driven method that is optimal for accurately delivering small amounts of electrolyte. 【Usage Scenarios】 - Injection of electrolyte in battery manufacturing plants - Processes using alkaline electrolytes - Situations requiring precise micro-injection 【Benefits of Implementation】 - Improved accuracy of electrolyte injection - Stabilization of product quality - Long-term cost reduction
Inquire About This Product
basic information
【Features】 - A corrosion-resistant resin pump capable of transferring various chemicals. - Adopts a solenoid drive system ideal for accurately dispensing small amounts. - Waterproof performance equivalent to IP65, suitable for outdoor use. - Compatible with power supplies ranging from 100 to 240V. - Features a user-friendly digital display. 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price information
Reference price TSP-60,100,200-BS-S: ¥80,000
Delivery Time
Applications/Examples of results
A corrosion-resistant resin pump capable of transferring various chemicals. Ideal for accurately delivering small amounts using a solenoid drive system.
Line up（3）
| Model number | overview |
|---|---|
| TSP-60-BS-S | Maximum discharge volume: 60 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Fluid transfer temperature: 0 to 40°C (must not freeze) Material: (wet parts) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side): Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-100-BS-S | Maximum discharge volume: 100 mL/min Maximum discharge pressure: 1 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transfer liquid temperature: 0 to 40°C (must not freeze) Material: (liquid contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side / suction side) Φ6 × Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transferable viscosity: 100 mPa·s |
| TSP-200-BS-S | Maximum discharge volume: 200 mL/min Maximum discharge pressure: 0.35 MPa Rated voltage: AC 100V to 240V single phase Frequency: 50/60 Hz Transport liquid temperature: 0 to 40℃ (must not freeze) Material: (contact part) PVC / (diaphragm) PTFE / (packing) EPDM Weight: 2.8 kg Connection size (discharge side/suction side) Φ6×Φ11 Stroke count: 1 to 200 times/min Stroke length: 0.0 to 1.0 mm Transportable viscosity: 100 mPa·s |
