Compatible with acids, alkalis, and high-viscosity paints! No worries about liquid leakage, can be used in explosion-proof facilities.

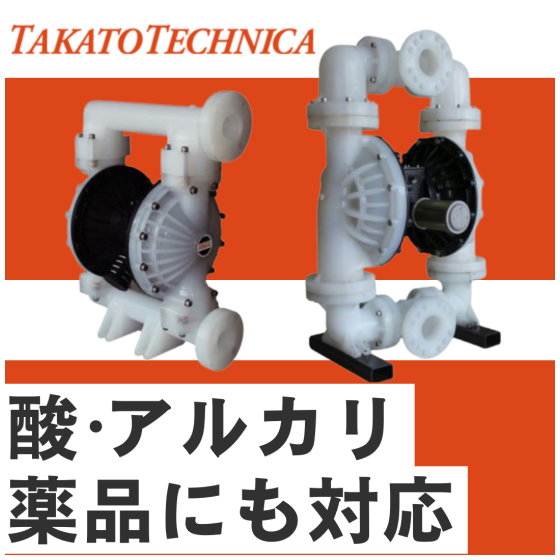

In the painting industry, the stable supply of paint is a crucial factor that affects quality. Particularly when using acidic or alkaline paints, or high-viscosity paints, the selection of pumps becomes very important. Liquid leakage and pump failures can lead to work interruptions and environmental pollution. Takato Technica's "AODD Resin (PP/PVDF) Series" was developed to address these challenges. 【Usage Scenarios】 - Transfer of paint - Supply of solvents such as thinners - Waste liquid treatment 【Benefits of Implementation】 - Reduced risk of liquid leakage - Safe paint supply - Improved maintainability
Inquire About This Product
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of the transferred fluid to the outside - Can self-prime from dry running, with high durability during dry operation - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587L/min, maximum particle size for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge volume 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587L/min, maximum particle size for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
