Compatible with various chemical solutions such as acids, alkalis, high-viscosity slurries, etc. No worries about liquid leakage.

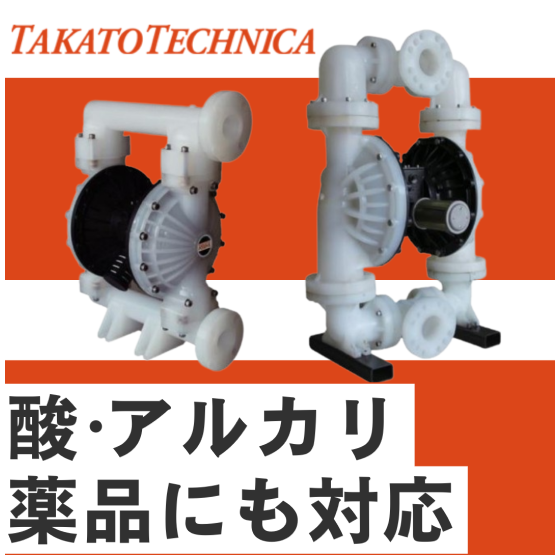

In the pharmaceutical industry, the supply of reagents requires precise transfer of liquids and safety is extremely important. Especially when handling corrosive reagents or high-viscosity liquids, leaks and pump failures increase the risk of work interruptions and environmental contamination. Our air-driven diaphragm pump is designed to handle a variety of liquids without the worry of leaks and is resistant to dry running. This enables safe and efficient reagent supply. 【Usage Scenarios】 - Transfer of corrosive liquids - Transfer of high-viscosity slurries - Use in explosion-proof areas 【Benefits of Implementation】 - Reduced risk of work interruptions due to leaks - Reduced risk of pump failures - Creation of a safe working environment
Inquire About This Product
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of the transferred fluid to the outside - Can self-prime from dry running, with high durability during dry operation - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, providing products tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle diameter for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587 L/min, maximum particle size for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587L/min, maximum particle size for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
