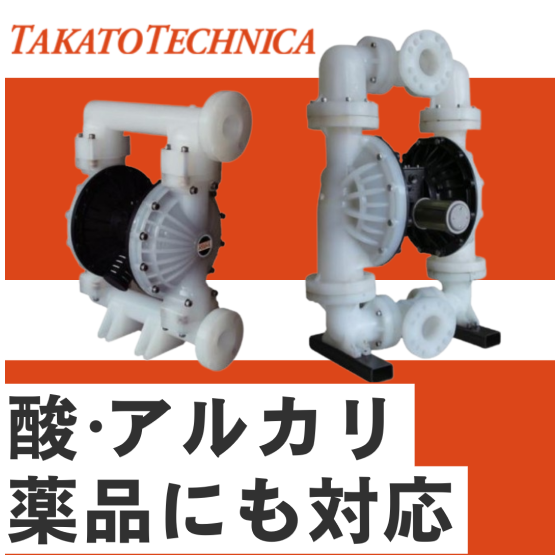

Air-driven diaphragm pump for acid and alkali chemical applications in battery manufacturing.
For the transfer of corrosive liquids such as electrolytes. Prevents liquid leakage and ensures a safe working environment.
In the battery manufacturing industry, safe transport of electrolytes is essential. In particular, electrolytes are highly corrosive, and leaks can not only threaten the safety of workers but also lead to production line shutdowns and a decline in product quality. Our air-driven diaphragm pump uses materials with excellent chemical resistance and features a structure designed to prevent leaks. This ensures a safe working environment and contributes to improved manufacturing efficiency. 【Usage Scenarios】 - Transport of electrolytes (acids and alkalis) - Chemical supply to production lines - Waste liquid treatment 【Benefits of Implementation】 - Reduced risk of accidents due to leaks - Ensured safety for workers - Stable operation of production lines - Improved product quality
Inquire About This Product
basic information
【Features】 - Capable of transferring high-viscosity slurries - No leakage of transferred fluid to the outside - Can self-prime from dry running, with high durability during dry operation - Easy control with a safe structure - Various material models available 【Our Strengths】 We manufacture and sell industrial equipment and urea water production systems, and we can propose products tailored to our customers' needs. We look forward to your inquiries and consultations.
Price range
Delivery Time
Applications/Examples of results
For more details, please check the PDF document or feel free to contact us.
Line up（10）
| Model number | overview |
|---|---|
| AODD-15-PP-TPT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection diameter 1/4 (8A), connection diameter Rc male thread 15A, 20A. |
| AODD-25-PP-TPT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-PP-TPT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-PP-TPT | Maximum discharge capacity 587 L/min, maximum particle diameter for transfer 6 mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-PP-TPT | Maximum discharge capacity 1060L/min, maximum particle diameter for transfer 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
| AODD-15-KY-TTT | Maximum discharge capacity 57L/min, maximum particle diameter for transfer 2.5mm, air connection port size 1/4 (8A), connection port Rc male thread 15A, 20A. |
| AODD-25-KY-TTT | Maximum discharge capacity 157L/min, maximum particle diameter for transfer 4mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 25A. |
| AODD-40-KY-TTT | Maximum discharge capacity 385L/min, maximum particle size for transfer 5mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 40A. |
| AODD-50-KY-TTT | Maximum discharge capacity 587L/min, maximum particle size for transfer 6mm, air connection diameter 1/2 (15A), connection diameter Rc male thread/flange 50A. |
| AODD-80-KY-TTT | Maximum discharge capacity 1060L/min, maximum particle size 9.4mm, air connection diameter 3/4 (20A), connection diameter Rc male thread/flange 80A. |
