We support "100% good product manufacturing" to prevent the outflow and occurrence of defects!

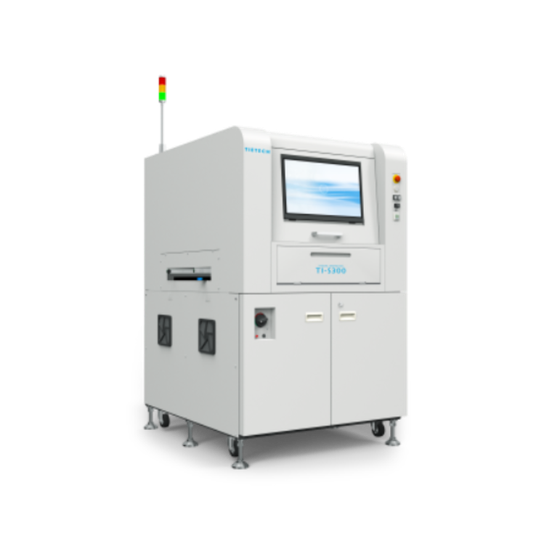

The "TI-S300" is a 3D solder printing inspection device that employs a laser-based optical cutting method. In addition to high repeatability and resistance to environmental influences, it provides fast and reliable inspection results through 3D + 2D full-angle inspection, ensuring that no defects are overlooked. To address new inspection challenges posed by the miniaturization of electronic components, we have evolved our cameras and inspection algorithms to meet customer needs. 【Features】 ■ Hardware that supports "sensors" in smart factories ■ Compatible with diverse inspections ■ Additionally, a 12μm high-resolution mode is available ■ High-speed inspection of large substrates ■ Improved operability *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Inspection Specifications (Partial)】 ■ Board Size: 50×50mm to 510×460mm (Standard) ■ Board Thickness: 0.3 to 4.0mm ■ Transport Reference: Rear or Front Fixed at Shipment ■ Flow Direction: Left to Right or Right to Left Fixed at Shipment ■ Transport Height: 900±25mm ■ Inspection Items: Smudging, Blurring, Center of Gravity Shift, Bridging, Balance, Volume, Cross-sectional Area, Projection Area, Average Height, Peak Height, Foreign Object Inspection *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
catalog（1）
Download All Catalogs
