Rapid and easy identification of internal defects using active thermography inspection method.

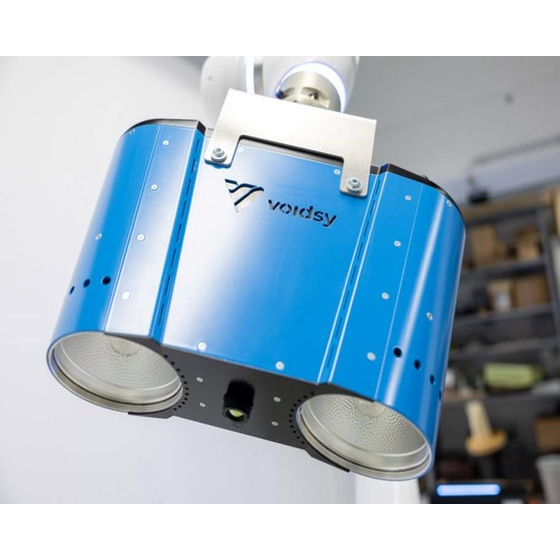

This is a device that adds heat to the measurement target and confirms changes in thermal conductivity using an infrared camera. By integrating the heat source and the camera, it has become compact and lightweight, making it suitable for field services and installation on robots. It can determine defects in CFRP and honeycomb internal structures without using X-ray inspection.
Inquire About This Product
basic information
Size: 423x270x130mm Weight: Less than 6kg Inspection area: Maximum 400x300mm Heat source: Halogen lamp Inspection time: Varies by work, but for a CFRP plate sized 400x300mm and 5mm thick, results can be obtained in 60 seconds. Detectable defects: Abnormal fiber alignment, water droplets, air void ratio, cracks, fissures, FOD, interlayer delamination, poor adhesion, fiber wrinkles, etc.
Price range
Delivery Time
Applications/Examples of results
It can be used anywhere for inspections of internal structures of aircraft in the aviation industry, as well as for products made of fibers and resins such as watercraft.
