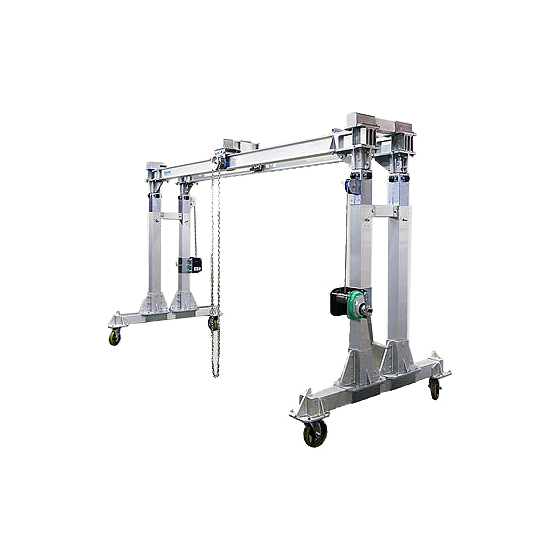

Heavy-duty 1500kg type equipped with a column expansion function using a manual winch.
●Intermediate fixation is possible with a stretch of 250mm pitch. ●Structural reinforcement is achieved with two rails, allowing for a maximum height of 4.5m.
Inquire About This Product
basic information
■Specifications Model Number Rated Load (kg) Size (mm) Weight (kg) Overall Height (Max/Min) Depth Trolley Lower Rail Length Trolley Range of Motion Overall Width Opening A B C D E F G Club Type Plain Trolley M42LGW35-SS30-PT-1500E 1500 3550/ 2545 1750 3310 3000 2270 3297 2570 419 M42LGW35-SS40-PT-1500E 4000 3270 4297 3570 440 M42LGW40-SS30-PT-1500E 4050/ 2795 2000 3810 3000 2270 3297 2570 433 M42LGW40-SS40-PT-1500E 4000 3270 4297 3570 455 M42LGW45-SS30-PT-1500E 4550/ 3045 2100 4310 3000 2270 3297 2570 444 M42LGW45-SS40-PT-1500E 4000 3270 4297 3570 466 Club Type Geared M42LGW35-SS30-GT-1500E
Price range
Delivery Time
Applications/Examples of results
● Standard equipment with club-style trolley Available in plain trolley specification (manual push type) and geared trolley specification (chain-driven type). Both can be easily fixed at any desired position. ● Urethane casters It is possible to change to no casters or fixed casters (wheel material can also be changed to nylon wheels). ● Winch for column extension With locking function. The handle part is detachable.
