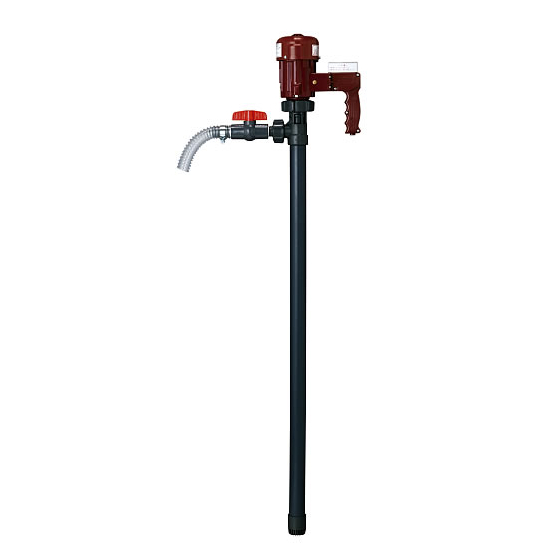

This is a handy pump that is ideal for transferring various acids, alkalis, and chemical solutions.
● The dangerous chemical transfer operation can be performed safely and efficiently with just this one unit. Additionally, you can choose from standard and high-lift models, standard and short pump lengths, and electric or air-driven (explosion-proof) motors to suit your needs. ● The electric motor features a fully enclosed structure that is resistant to harsh environments, and it prevents overheating through forced cooling with an external fan, ensuring reliability for long hours of continuous operation.
Inquire About This Product
basic information
■Specifications Model Number: M1490CP-E202K Series M1490CP-E202HK Series Type: Standard Type High Lift Type Water Flow Rate (at 0m Head): 80 liters/min 60 liters/min Maximum Head: 5m 10m Maximum Operating Temperature: 50℃ Flow Control: Valve Type Approximate Weight: 5.0kg Maximum Viscosity: 200cP Note 1 Power Supply: AC100V Note 4 Single Phase 50/60Hz Motor: Rated Output: 160W Continuous Rating Rated Current: 4.0A Power Consumption: 350VA ±15% Insulation Class: Class B Cable: PVC Wire 5m Liquid Contact Material: Pipe Section: Polypropylene Propeller: Polypropylene Hastelloy-C Seal Section: Ceramic Fluororesin-based Sliding Material Fluororubber Hastelloy-C Soft PVC Valve: PVC EPDM Accessories: Soft PVC φ25 Hose 1.5m Note 3 2 Hose Clamps 1 Nozzle 2 Carbon Brushes
Price range
Delivery Time
Applications/Examples of results
■Check Valve (Standard Type and High Lift Type) Adopting a two-stage valve structure with a ball and stopper, backflow is completely prevented. When transferring liquids with the pump, work can be carried out safely without any spillage. (Always close the outlet valve and be careful of any liquid dripping from the remaining liquid in the hose.) Additionally, due to the design of the check valve structure and the suction inlet, the amount of residual liquid has been significantly reduced. If the container is tilted, only a small amount of liquid will remain. This is expected to improve cost-effectiveness.
