Specifications for materials, surface treatments, lubricants, mounting screws, and more are also included!

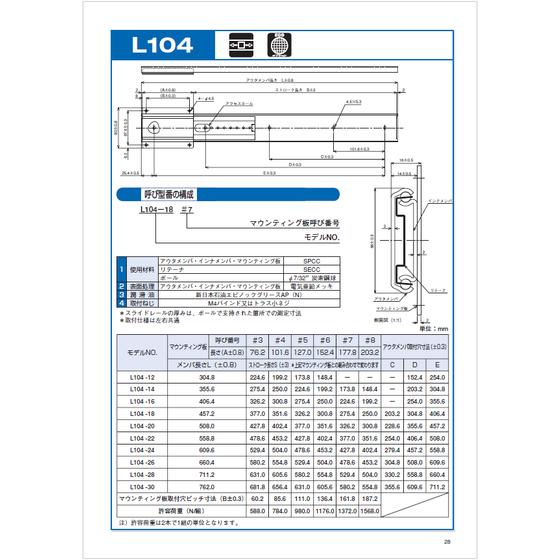

This document contains the drawings and specifications for the linear type slide 'L104' handled by Fujikawa Denko Co., Ltd. It includes drawings with information such as outer member length and stroke length, as well as numerous other details including model numbers. Additionally, it provides specifications regarding materials used, surface treatment, lubricants, mounting screws, and more, so please make use of it. 【Model No. (partial)】 ■L104-12 ■L104-14 ■L104-16 ■L104-18 ■L104-20 *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Materials Used - Outer member/Inner member/Mounting plate: SPCC - Retainer: SECC - Ball: φ7/32" carbon steel ball ■Surface Treatment - Outer member/Inner member/Mounting plate: Electro-galvanized ■Lubricating Oil: Shin Nihon Sekiyu Epinoque Grease AP(N) ■Mounting Screw: M4 bind or truss screw *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
For more details, please download the PDF or feel free to contact us.
