Space-saving with high inrush current support. Compliant with IEC standards. Lightweight and multifunctional AC power supply.

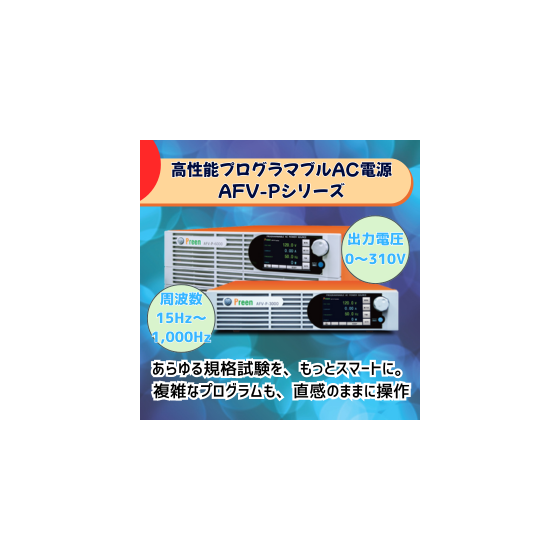

AFV-P Series
High-precision measurement, abundant communication interfaces. A high-performance power supply that changes the development and testing environment. Contributes to energy saving. Lightweight and compact design.
The AFV-P series is a programmable AC power supply that combines DC output with high-precision measurement capabilities. This AC power supply features: - Different capacities of 800VA / 1500VA / 3000VA / 6000VA - Total Harmonic Distortion (THD) of less than 0.3% - Output voltage range of 0 to 350Vac and 0 to 480Vdc - Output frequency range A: 5 to 2000Hz, B: 15 to 1000Hz - Output inrush current rated at 4.5 times the nominal value, among other specifications. It is suitable for applications such as design verification and quality inspection across a wide range of industries, including switching power supplies, LED lighting, motors, renewable energy, defense, and aerospace.
Inquire About This Product
Related Videos
basic information
The output voltage range is adjustable from 0 to 350VAC, with output frequency A: 5 to 2000Hz, B: 15 to 1000Hz, making it suitable for applications such as design verification and quality inspection in industries like switching power supplies, LED lighting, motors, renewable energy, national defense, and aerospace. 【Output Power】Single-phase: 800VA / 1.50kVA / 3.0kVA / 6.0kVA 【Output Voltage】0~175Vrms / 0~350Vrms 【Output Frequency】A ver.: 5~2000Hz / B ver.: 15~1000Hz 【Total Harmonic Distortion (THD)】≦ 0.3% at 5~100Hz / ≦ 0.5% at 101~500Hz / ≦ 0.8% at 501~1000Hz / ≦ 1.5% at 1001~1500Hz / ≦ 2% at 1501~2000Hz (Resistive Load) 【Load Regulation】≦ 0.07% F.S. (Resistive Load)
Price information
Please contact us.
Delivery Time
Applications/Examples of results
It is suitable for applications such as design verification and quality inspection in a wide range of industries including switching power supplies, LED lighting, motors, renewable energy, national defense, and aerospace.
