AC adapter with medical standards of 24W and 36W | PSE mark
Selectable output plug. Choose between fixed or detachable input pins. Convenient selectable pins for different export destinations. High-quality, highly reliable switching AC adapter!

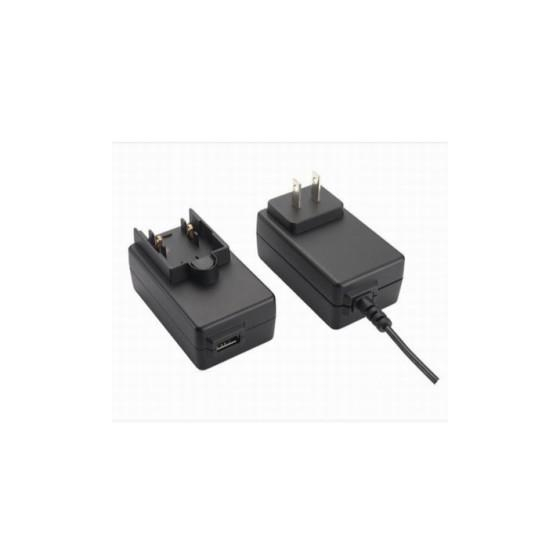

【AC Adapter・Power Supply・Medical Standards】24W・36W Medical Device AC Adapters｜Selectable Input and Output Pins｜ATM024T ATM036A4
Are you looking for an AC adapter? This is an external power supply that complies with medical standards of 24W and 36W. Outputs include DC12V2A and DC24V1A, among others. Choose from selectable output plugs, with either fixed or detachable input pins. Convenient for international export, with selectable pins for different export destinations. We also have models with PSE marks for Japan, and also meet other overseas safety standards. Please consider connecting it to medical devices you are developing or healthcare products you plan to import. It is popular among those seeking reliable switching AC adapters. Feel free to consult us about customer-specified DC plugs and secondary side connector connections for the AC adapters. We prioritize reliability and are equipped with various protection circuits such as OVP and SCP. We conduct thorough inspections on all units, ensuring high quality and reliability. We guarantee long-term stable supply, thorough inspections, and long-term warranties. 【Features】 ■ PSE mark included (Electrical Appliance and Material Safety Law) ■ Complies with IEC60601-1 ■ Custom DC plug connections available ■ Long-term stable supply ■ Thorough inspections conducted ■ Long-term warranty of 2 years *We offer a variety of models ranging from 6W to 450W. *Please feel free to inquire, as the status of safety standard acquisitions may vary.
Inquire About This Product
basic information
【Overview】 ■ AC Adapter: Wall-mounted type ■ Input Voltage: 100–240VAC ■ Frequency: 50–60Hz ■ Output Voltage: As described below ■ Operating Temperature: -20–40℃ ■ Operating Humidity: 20–80% ■ Storage Temperature: -20–80°C ■ Storage Humidity: 10–90% (No water droplets) ■ MTBF: 300,000 hours (calculated value) We offer consultations on how to choose a reliable AC adapter from the design stage. Are you unsure whether to use an AC adapter (external power supply) or a switching power supply (built-in power supply)? Using an AC adapter has the following advantages: It is easier to address heat and noise issues, compliance with regulations is straightforward (PSE certification obtained), it enables miniaturization, space-saving design, easy maintenance due to replaceability, and cost reduction. We recommend AC adapters as external power supplies for electronic devices. They come with PSE marks and CE markings. We manufacture and ship from small quantities to mass production with relatively short lead times. * Our dedicated staff will provide consistent support from consultation, estimation, development, manufacturing, delivery, to after-sales support. * The status of safety standard certifications may change. Please feel free to contact us for details.
Price range
Delivery Time
Applications/Examples of results
【Applications】 Our AC adapters are suitable for a variety of uses. General Equipment: Communication devices, Wi-Fi equipment, PC peripherals, water purifiers, leisure equipment, sports devices, and more. Industrial Equipment: Retail terminals, commercial printers, security equipment, broadcasting video equipment, network devices, signage, and more. Medical Equipment: Blood pressure monitors, electrocardiograms, ultrasound diagnostic devices, various data loggers, X-ray machines, suction devices, electronic medical records, and more. Home Appliances: Air purifiers, small cooking appliances, portable refrigerators, and other small home appliances. <Custom Solutions> We offer customizable AC adapters tailored to your specifications. Options include specified plug connections, changes in wire length, center negative (reverse polarity), cannon connectors, connectors that excel in fit and can withstand high capacity, EIAJ plugs, XLR, Hirose, Nanahoshi, SMK, DIN, and special specifications such as misalignment prevention tabs, anti-pull lock types, and screw types. <Custom Orders and Mass Production> Logo printing on labels, use of specified parts, provision of reliability test data, short lead times, and production from small lots to large-scale mass production. *We manage everything from design, manufacturing, inspection to shipping in a consistent manner. We provide high-quality AC adapters. *Please feel free to contact us for more details.
Line up（12）
| Model number | overview |
|---|---|
| ATM024T-W050□ | DC5.0V 4.0A 20.0W |
| ATM024T-W090□ | DC9.0V 2.5A 22.5W |
| ATM024T-W120□ | DC12.0V 2.0A 24.0W |
| ATM024T-W150□ | DC15.0V 1.6A 24.0W |
| ATM024T-W240□ | DC24.0V 1.0A 24.0W |
| ATM024T-W480□ | DC48.0V 1.5A 24.0W |
| ********************************* | ********************************* |
| ATM036T-W050□ | DC5.0V 5.0A 25.0W |
| ATM036T-W090□ | DC9.0V 4.0A 36.0W |
| ATM036T-W120□ | DC12.0V 3.0A 36.0W |
| ATM036T-W150□ | DC15.0V 2.4A 36.0W |
| ATM036T-W240□ | DC24.0V 1.5A 36.0W |
catalog（4）
Download All Catalogs
Company information
We manufacture AC adapters on a made-to-order basis at our overseas factory. We handle switching AC adapters with PSE marks (Electrical Appliance and Material Safety Law) and power cables (AC cords) for domestic use in Japan and for overseas export, all with PSE marks (certified by UL, VDE, CCC, KC, BIS, etc.). We also sell AC adapters that meet medical standards, touch panel PCs, hospital-grade power cords with anti-pull and lock features, and antibacterial waterproof keyboards and mice, all suitable for medical devices and hygienic environments. We are currently selling ODU connectors with high durability for insertion and removal, as well as wiring materials such as cable ties and wiring ducts, imported directly from the factory. We prioritize environmental considerations and comply with RoHS2, ChemSHERPA, provide reliability testing documentation, issue non-applicability judgment letters and delivery specifications, and support various reporting documents. Please consult us for OEM inquiries. We believe that "high-quality products are born from strictly managed manufacturing sites," and we thoroughly enforce quality control. With 36 years of experience in the electrical industry, we have obtained ISO 9001:2015 certification in-house. Our dedicated staff provides consistent support to respond quickly and accurately to customer needs. Additionally, we have expanded our office in Vietnam to accommodate trilateral trade, overseas deliveries, and foreign currency transactions in US dollars. For more details, please visit our official website.
