It features a straight type with a 0.5mm square pin, capable of handling high currents (3A). It has a high-reliability design with heat resistance and flame retardancy suitable for industrial applications.

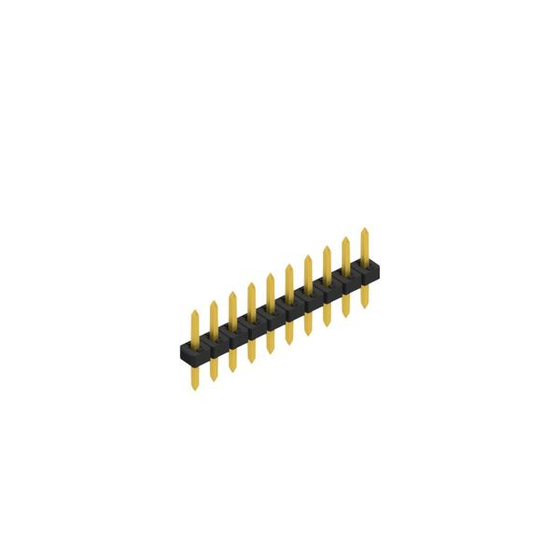

We, Aquaus Co., Ltd., are the official domestic distributor of the German manufacturer Fischer Elektronik, which specializes in heat sinks, PCB connectors, and aluminum cases. The "SLY 1" is a male pin header compatible with 2mm pitch through-hole mounting (THT). It features a straight type with 0.5mm square pins and supports high current (3A). It is designed for high reliability with heat resistance and flame retardancy suitable for industrial applications. Features: - 2.00mm compact pitch - Supports 1 to 50 poles - High current support with a nominal current of 3A - Low contact resistance (≤5mΩ) - Options for gold, partial gold, or tin plating - Flame retardant compliant with UL94 V-0 - Available in a total of five types with different lengths
Inquire About This Product
basic information
Electrical Characteristics ItemSpecification Nominal Current: 3 A Nominal Voltage: 100 V DC Test Voltage: 500 V Contact Resistance: ≤ 5 mΩ Insulation Resistance: > 10⁷ Ω·m Material and Structure Pitch: 2.00 mm Number of Pins: 1 to 50 Pin Shape: □0.5 mm Straight Contact Material: CuSn Alloy Surface Treatment: Partial Gold Plating / Gold Plating (Ni≥0.2µm+Au) / Tin Plating (Ni 4–6µm+Sn) Insulator Material: PA 4.6 GF (Glass Fiber Reinforced) Flame Resistance: UL 94 V-0 Connection Method: THT (Through-Hole Soldering) ● Temperature Characteristics Operating Temperature Range: -40℃ to +163℃ Solder Heat Resistance: 260℃ / 10 seconds
Price range
Delivery Time
Applications/Examples of results
- Circuit boards for industrial equipment - Power circuits - Control units - Communication and measurement equipment
