Interferometer - Open-loop Z stage for optical phase control

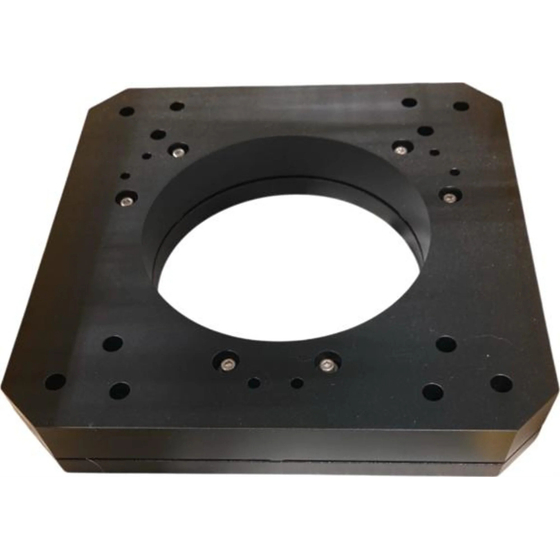

In the field of research and development, particularly in interferometry and precision optical experiments, the control of minute optical phase shifts significantly affects the accuracy of experimental results. Even slight differences in displacement can impact measurement precision and analysis outcomes. The S-312 optical phase shifter is an open-loop piezo Z-stage designed for interferometer applications and optical phase control purposes. Its piezo-flexure structure enables smooth and high-resolution control of minute displacements, supporting precise phase adjustments. Due to its compact design, it is also suitable for integration into research equipment and optical systems. 【Usage Scenarios】 - Interferometer experiments - Optical phase shift control - Holography experiments - Precision optical measurements - Optical research involving nanopositioning 【Benefits of Implementation】 - Stable phase adjustments through minute displacement control - Achieving highly reproducible optical experiments - Improved device integration due to compact design - Flexible experimental configurations for research purposes
Inquire About This Product
basic information
【Features】 - Designed for optical phase shifting in advanced interferometer applications - Slim stage - Achieves Z motion with tilt error correction through a tripod piezo drive design - Custom model support (e.g., closed-loop) - Stroke: 0μm to 15μm - Available in five aperture sizes: 53 mm to 311 mm - Chip tilt correction is also possible with optional driver 【Our Strengths】 Based on precision control technology cultivated over more than 50 years at our headquarters in Germany, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide. With a rich lineup and technical expertise, we propose optimal solutions to meet our customers' needs.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
・Interferometer ・Optical components
