Optical Adjustment Z Chip Tilt Air Bearing A-523

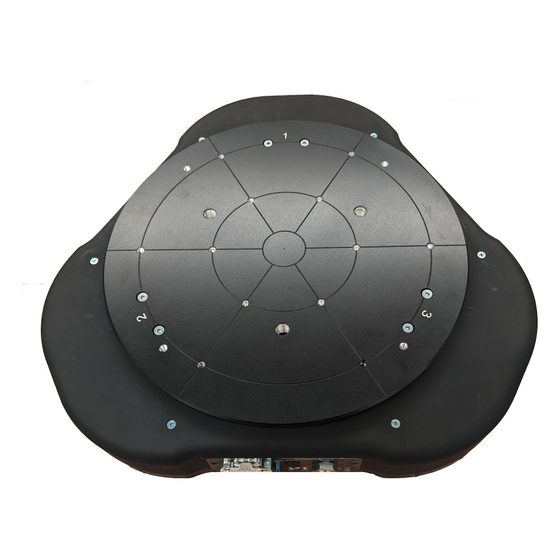

PIglide High Precision Z Chip/Tilt Air Bearing Stage A-523
Releasing a high-precision air bearing stage with 3-axis motion on a single thin platform!
In the optical industry, precise positioning is essential for adjustment tasks. In particular, the positioning of optical components such as lenses and mirrors is a crucial factor that affects the system's performance. Even minor misalignments can lead to a decrease in image quality or a deterioration in measurement accuracy. Our thin air bearing Z Tip/Tilt stage achieves ultra-high precision positioning in three axes, enabling the precise adjustment of optical components. [Usage Scenarios] - Positioning of optical lenses - Angle adjustment of mirrors - Alignment of optical fibers [Benefits of Implementation] - Improved optical performance through high-precision positioning - Increased efficiency in adjustment tasks - Stabilization of product quality
Inquire About This Product
Related Videos
basic information
【Features】 - Travel Range: Z-axis ±2.5 mm, θX, θY axes ±1° - Load Capacity: 8 kg - Platform: Diameter 250 mm - Height: 60 mm 【Our Strengths】 Based on over 50 years of experience from our headquarters in Germany and 30 years of experience from our Japanese subsidiary, we provide piezo stages and actuators adopted by research institutions and equipment manufacturers worldwide, leveraging our precision control technology. With a rich lineup and technical expertise, we offer optimal solutions tailored to our customers' needs.
Price range
Delivery Time
Applications/Examples of results
Wafer inspection Fiber positioning Optical system positioning Flat screen inspection Maskless lithography MicroLED manufacturing and other high-precision applications
