Efficiently sorting minerals using centrifugal force and circulating air currents.

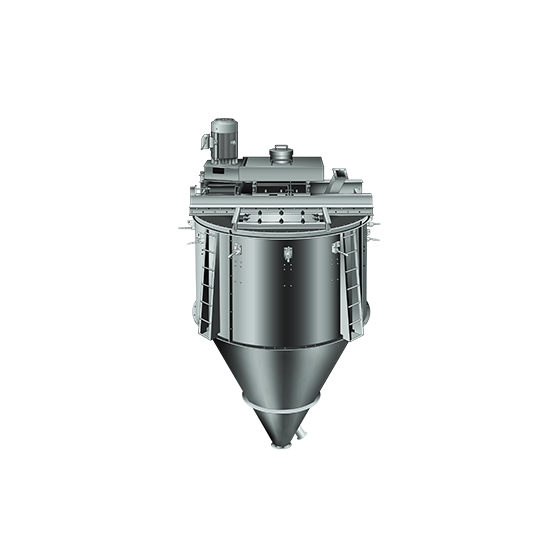

In mining, it is essential to efficiently separate the desired minerals from the extracted ores. Particularly, to ensure a stable supply of high-quality minerals, it is important to accurately control the particle size and effectively separate unwanted materials. The SAS-type air separator enables efficient classification of minerals through circulating airflow and centrifugal force. 【Application Scene】 - Mineral sorting 【Benefits of Implementation】 - Efficient classification processing - Quality improvement through particle size adjustment
Inquire About This Product
basic information
【Features】 - No external blower is required as the built-in main wing generates classified airflow. - No need for cyclones or bag filters for fine dust collection. - Classification point settings can be made in the range of 75μm to 150μm. 【Our Strengths】 Since our founding in 1913, we have developed and manufactured machinery for the powder industry, focusing on core technologies such as crushing, grinding, classification, drying, and calcination. We aim to be a trusted machinery manufacturer by solving our customers' problems.
Price information
-
Delivery Time
Applications/Examples of results
- Classification of mineral products - Classification of plant fibers
Line up（8）
| Model number | overview |
|---|---|
| SAS-3 | Motor: 2.2 to 3.7 kW, approximate machine weight: 900 kg, input processing capacity: 0.3 to 0.6 t/h, width: 1,200, height: 1,900. |
| SAS-4.5 | Motor: 3.7 to 7.5 kW, approximate machine weight: 1,600 kg, input processing capacity: 0.5 to 1.5 t/h, width: 1,700, height: 2,300. |
| SAS-6 | Motor: 11 to 5.5 kW, approximate machine weight: 3,500 kg, input processing capacity: 1.5 to 4.5 t/h, width: 2,300, height: 3,600. |
| SAS-8 | Motor: 22-15 kW, approximate machine weight: 6,200 kg, input processing capacity: 5-15 t/h, width: 3,000, height: 4,800. |
| SAS-10 | Motor: 30 to 20 kW, approximate machine weight: 9,600 kg, input processing capacity: 10 to 15 t/h, width: 3,600, height: 5,800. |
| SAS-12 | Motor: 37-30 kW, approximate machine weight: 11,500 kg, input processing capacity: 30-60 t/h, width: 4,300, height: 6,400. |
| SAS-14 | Motor: 75-55 kW, approximate machine weight: 14,500 kg, input processing capacity: 60-80 t/h, width: 5,000, height: 7,300. |
| SAS-16 | Motor: 110-90 kW, approximate machine weight: 18,500 kg, input processing capacity: 80-120 t/h, width: 5,500, height: 8,200. |
catalog（2）
Download All Catalogs
Company information
Since our founding in 1913, our company has focused on developing and manufacturing machinery for the powder industry, centered around crushing, grinding, classification, drying, and calcination, as well as general industrial machinery for sectors such as chemicals, glass, cement, steel, and mining, along with machinery related to environmental protection and recycling. The applications and demand for our products span a wide range of industries, contributing to the development of various sectors including chemicals, glass, carbon, cement, silica sand, steel, lime, building materials, new materials, and food (such as tea leaves, rice, kelp, young barley leaves, buckwheat, soybeans, corn, and bonito flakes).
