Easy to operate, high performance, ultra-lightweight; recommended for those measuring metal hardness for the first time.

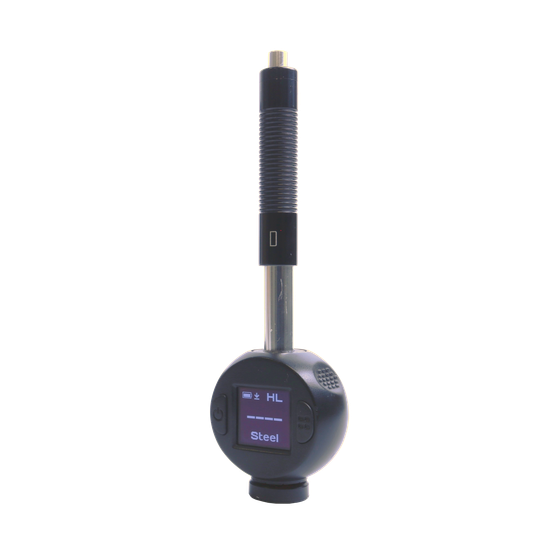

"Leeb Lite" is a hardness tester recommended for those measuring the hardness of metals for the first time. It is easy to operate, allowing anyone to obtain stable measurement results. Based on the rebound (Leeb) method, it is suitable for measuring the hardness of metals that weigh over 5 kg and are thicker than 25 mm, and it can also accommodate measurements of coarse-grained castings and forgings.
Inquire About This Product
basic information
Measurement Method: Rebound (Leeb) Type D Hardness Scale: HLD, HRC, HV, HB, HRB, MPa Measurement Range: 100 ~ 999 HLD Accuracy: HLD: ±10 Materials: Steel, Alloy Steel, Stainless Steel, Cast Iron, Ductile Cast Iron, Aluminum, Brass, Bronze, Copper Power Supply: Built-in Battery (3.7V 250mAh) Applicable Standards: ASTM A956, ISO 16859 Accessories: Main Unit, USB Cable, USB Charger, Carrying Case, Instruction Manual, Calibration Certificate, Warranty Certificate
Price range
P3
Delivery Time
Applications/Examples of results
■Hardness Measurement Targets Machine Structural Parts: Machine tool beds and columns, industrial machine frames, structural parts of presses, tie bars of injection molding machines Cast Parts: Cast steel products, cast iron pump casings, valve bodies, edges of molds Forgings and Rolled Products: Forged shafts, crankshafts, gear blanks, flanges Heat-Treated Parts: Hardened shafts, gears, outer rings of bearings, mold fixtures Structural Steel Materials: H-beams, I-beams, thick steel plates, construction machinery components, bridge components ■Materials for Hardness Measurement Targets Steel Materials: Carbon steel (such as S45C), alloy steel (such as SCM series), tool steel, mold steel, structural steel Stainless Steel: SUS304, SUS316, SUS420, etc. Cast Iron: FC material (gray cast iron), FCD material (ductile cast iron), cast steel products Non-Ferrous Metals: Aluminum, aluminum alloys, brass, bronze, copper
catalog（1）
Download All Catalogs
News about this product（1）
Company information
Highly knowledgeable and skilled professional advisors will propose the optimal equipment and inspection methods. Dakota Japan offers ultrasonic inspection equipment, including ultrasonic thickness gauges, ultrasonic bolt tension meters, and ultrasonic flaw detectors, as well as unique hardness testers, thickness gauges, and various test specimens.
