With a mechanical transmission system that employs a differential lock, it is possible to work on slopes without slipping!

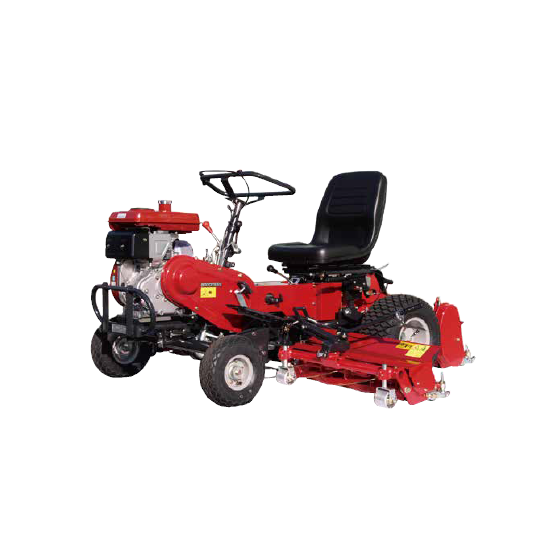

The "LM180C" is a riding engine mower designed for cutting grass in golf course roughs, tees, and other areas. It boasts high work efficiency with a compact body and wide cutting width. The lifting of the work unit is done by operating the levers of each unit. Due to the very low center of gravity of the machine, it can operate safely in various locations. The cutting width accommodates 188 cm. 【Features】 ■ The drive system uses a mechanical transmission with a differential lock. ■ It can work on slopes without slipping. ■ High work efficiency with a wide cutting width in a compact body. ■ The machine's low center of gravity allows for safe operation. *For more details, please download the PDF or feel free to contact us.
Inquire About This Product
basic information
【Specifications】 ■Overall Length: 215cm ■Overall Width: 208cm (working) / 185cm (moving) ■Overall Height: 107cm (seat) / 102cm (handle) ■Weight: 383kg ■Fuel Tank Capacity: Gasoline 6.0dm3 (6.0 L) ■Cutting Width: 188cm ■Cutting Height: 13.0-50.0mm ■Number of Reel Blades: 5 blades / 7 blades ■Maximum Inclination Angle: 18 degrees *For more details, please download the PDF or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Usage】 ■Mowing grass in golf course roughs, tees, etc. *For more details, please download the PDF or feel free to contact us.
