It is a master device that receives and aggregates measurement data from a wireless data logger and transfers it to a PC or network.
It supports various connection methods such as USB, RS485 (Modbus), Ethernet, Wi-Fi, and 4G communication, depending on the application.
Inquire About This Product
basic information
■Specifications Wireless Frequency: 915.9–929.7MHz (Japan) Transmission Distance: In open space: 300m to data logger with internal antenna >500m to repeater or data logger with external antenna (The transmission distance may decrease due to obstacles or bad weather.) Power Supply: Built-in 3.7V lithium-ion rechargeable battery, capacity 2250mA/h, JST 3-pin connector DC6V output AC adapter (optional) Direct power supply from PC's USB port Power Consumption: Approximately 30mA Battery Life: Approximately 3 days Operating Conditions: -10 to +60℃ / 0 to 85% RH, no condensation Dimensions: 135×86×33mm (excluding antenna) Weight: Approximately 200g Housing Material: Plastic
Price range
Delivery Time
Applications/Examples of results

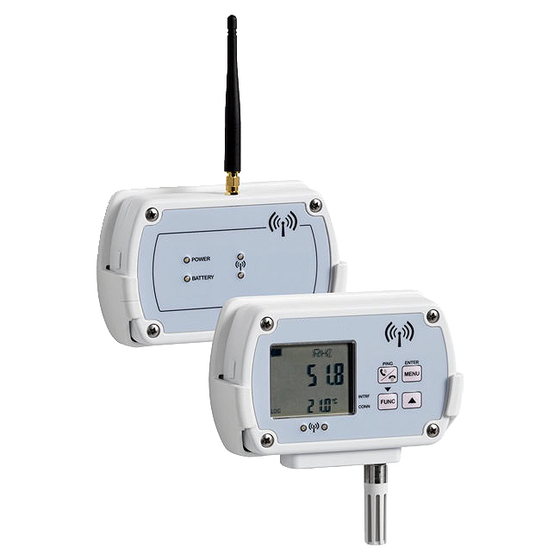

[Master Unit (USB Output): MC8ED35AP-BU1SJ] The master unit serves as the interface between the network data logger installed at the measurement site and the PC. It wirelessly receives data stored in the remote data logger and communicates with the PC via USB output. No installation of USB drivers is required.
