90W AC adapter, medical certification obtained for the power unit | Selectable inlet
This is an AC adapter with a PSE mark that meets the medical standard 60601-1 and has an output of 90W. It is an AC adapter with a proven track record of adoption by major manufacturers!

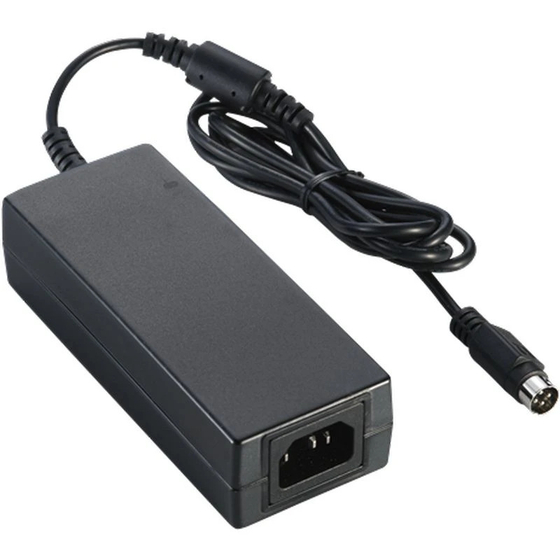

[AC Adapter, Power Supply, Short Delivery Time] AC adapter with a standalone output of 90W that has obtained medical standards, selectable AC inlet hole ATM090A4.

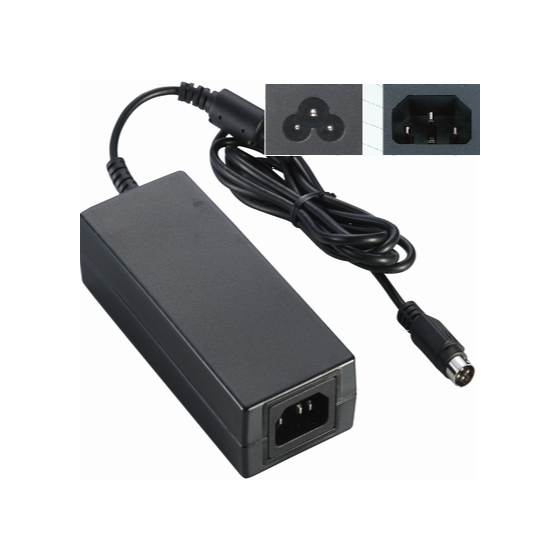

Are you looking for an AC adapter? This is an AC adapter with a medical certification and PSE mark (Electrical Appliance and Material Safety Law) with an output of 90W. The output can be DC12V or DC24V, among others. ■ Complies with medical standard IEC60601-1 ■ You can choose the shape of the AC inlet (C6, C8, C14) ■ PSE mark included (Electrical Appliance and Material Safety Law) ■ Custom plug connection available ■ Long-term stable supply ■ Full inspection conducted ■ Long-term warranty of 2 years • Supports universal input of 100–240VAC, convenient for overseas equipment • Standard features include short circuit protection, overvoltage protection, and overcurrent protection • EMC standards: EN55011, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 • Power topology: Switching method (flyback) This AC adapter complies with the international safety certification IEC60601-1. We also accept connections for customer-specified DC plugs and secondary side connectors. Focusing on reliability, it is equipped with various protection circuits such as OVP and SCP. We provide long-term stable supply, full inspection, consistent staff support, after-sales support, and a long-term warranty. *For more details, please feel free to contact us.*
Inquire About This Product
basic information
【Overview】 ■ AC Adapter: Desktop type ■ Input Voltage: 100–240VAC ■ Frequency: 50–60Hz ■ Output Voltage: As described below ■ Operating Temperature: -20 to +40℃ ■ Operating Humidity: 20–80% ■ Storage Temperature: -20 to +80°C ■ Storage Humidity: 10–90% (No droplets) ■ MTBF: 300,000 hours (calculated value) This AC adapter (compliant with IEC60601-1) was developed as an external power supply for medical electronic devices. It comes with PSE and CE marks. It can accommodate both small and mass production. There is a wealth of adoption experience by major manufacturers. Dedicated staff will provide consistent support from specification consultation, quotations, development, manufacturing, delivery, to after-sales support. * The status of safety standard acquisition may vary. Please check with us for the latest information. * For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 General: Communication devices, Wi-Fi equipment, PC peripherals, refrigerators, water purifiers, leisure equipment, sports equipment, seasonal decorations, etc. Industrial: Store ordering terminals, commercial printers, security cameras, broadcasting equipment, network devices, advertising signs, etc. Medical: Blood pressure monitors, electrocardiograms, ultrasound examination devices, in-hospital cameras, laser equipment, X-ray devices, suction devices, treadmills, etc. *Please feel free to contact us for more details. We also accommodate requests for connecting specified plugs, changing wire lengths, center negative (reverse polarity) configurations, etc. (Large-capacity connectors, high mating connectors, EIAJ plugs, Canon connectors, XLR, Hirose, SMK, DIN, mis-mating prevention plugs, pull-out prevention locking types, screw types, and more) For labeling with your logo, incorporating specified parts, reliability test data, short delivery times, small lot sizes, custom orders, new developments, large-scale production, and other inquiries related to AC adapters, please feel free to consult us.
Line up（5）
| Model number | overview |
|---|---|
| ATM090A4-□120 | DC12.0V 7.50A 90.0W |
| ATM090A4-□150 | DC15.0V 6.00A 90.0W |
| ATM090A4-□180 | DC18.0V 5.00A 90.0W |
| ATM090A4-□190 | DC19.0V 4.70A 89.3W |
| ATM090A4-□240 | DC24.0V 3.75A 90.0W |
