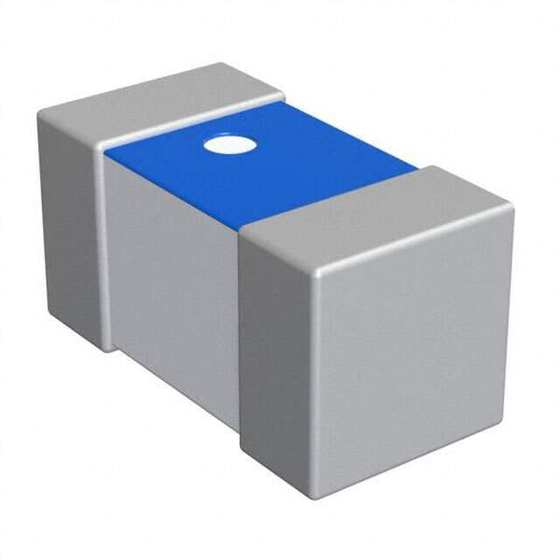

High-Q RF inductor enabling compact wireless designs
The Murata Electronics North America 020043-LQP03TN2N4B02D is a thin film inductor with the following specifications: Current Rating: 500mA Inductance: 2.4nH Tolerance: ±0.1nH DC Resistance (DCR): 200 mOhm Max Q @ Freq: 14 @ 500MHz Frequency - Self-Resonant: 10GHz Package: 0201 (0603 Metric), in a reel - TR form factor Operating Temperature Range: -55°C to 125°C
この製品へのお問い合わせ
基本情報
Murata LQP03TN2N4B02D is an active thin film inductor featuring 2.4nH inductance with ±0.1nH tolerance and 500mA current rating. Designed with a non-magnetic core, it delivers high-frequency performance with Q factor of 14 at 500MHz and self-resonant frequency up to 10GHz. This compact 0201 (0603 Metric) SMD inductor operates from -55°C to +125°C and is supplied in Tape & Reel packaging.
価格帯
納期
用途／実績例
Murata LQP03TN2N4B02D is a high-frequency thin film chip inductor designed for RF and wireless applications. It is commonly used for impedance matching, resonance circuits, signal filtering, and high-frequency signal processing in devices such as smartphones, Bluetooth modules, Wi-Fi equipment, GPS receivers, IoT devices, and other compact electronic products. Its ultra-small 0201 package and high Q performance make it suitable for space-limited RF circuit designs requiring stable and precise inductance.
