High-voltage PNP transistor for reliable switching.
Key Features Device Type: PNP Bipolar Junction Transistor Configuration: Single Collector-Base Voltage (V<sub>CB): 80 V Collector-Emitter Voltage (V<sub>CE): 80 V Emitter-Base Voltage (V<sub>EB): 5 V Collector Current (I<sub>C): 500 mA Power Dissipation (P<sub>D): 225 mW DC Current Gain (h<sub>FE): 100 to 250 at 10 mA, 5 V Operating Temperature Range: -55°C to +150°C Mounting Style: Surface Mount Package / Case: SOT-23-3 RoHS: Compliant
この製品へのお問い合わせ
基本情報

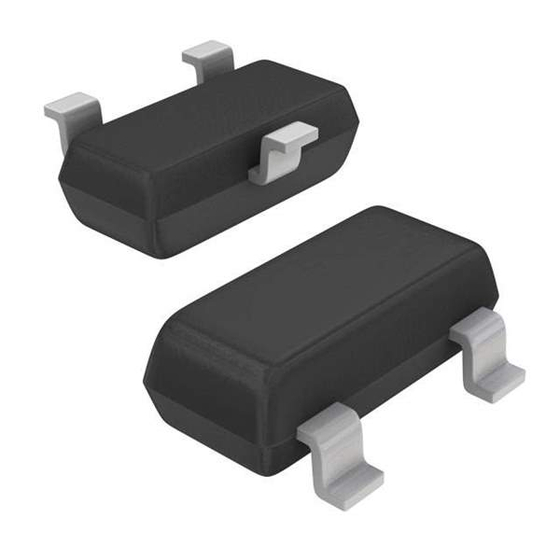

ON Semiconductor SMMBTA56LT1G is an active PNP bipolar transistor featuring a 500mA collector current and 80V collector-emitter breakdown voltage. With low saturation voltage, high gain, and a compact SOT-23-3 SMD package, it delivers reliable switching and amplification performance. It is widely used in industrial control, power management, signal processing, relay drivers, and compact electronic applications requiring efficient PNP switching.
価格帯
納期
用途／実績例
Applications The SMMBTA56LT1G is suitable for a variety of applications, including but not limited to: Power Management Circuits Signal Amplification Switching and Load Driving Linear Amplification and Active Filtering Consumer Electronics Telecommunication Systems Automotive Modules
