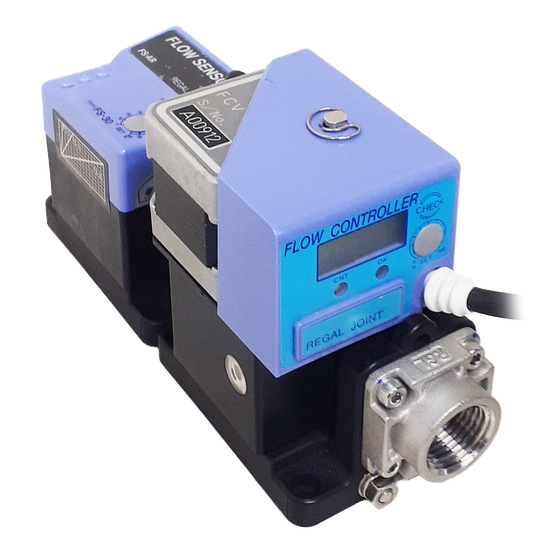

Integrate the functions of the flow sensor and valve to automatically control the water flow, such as coolant, using a microcontroller.
【Do you have any of these challenges?】 ・Unstable flow rates affecting equipment performance ・Manual valve adjustment requiring time and labor ・Need for compact flow control equipment for limited installation space → The FCV Flow Controller provides the solution! 【Key Features】 ・Flow measurement and control integrated into a single unit ・Stable flow control contributes to consistent equipment performance ・Compact design helps save installation space ・Ideal for equipment integration with DC24V operation ・Compliant with CE / UKCA standards 【Renewal Features】 ・Significantly improved control response time ・New standby mode helps reduce energy consumption << For more details, please download the catalog. >> Contact form: https://rgl.co.jp/contact/
Inquire About This Product
basic information
【Specifications】 ・Types: 3 L/min / 10 L/min / 30 L/min ・Flow Control Range: 0.5–30.0 L/min ・Applicable Fluids: Industrial water, water, etc. ・Max. Operating Pressure: 0.5 MPa ・Fluid Temperature: 0–60°C ・Power Supply: DC24V ±10% ・Connection Size: Rc3/8 (PT thread) ・Wetted Materials: POM / PA / SUS304 / Fluoroelastomer ・Piping Materials: SUS / Brass (BsBM) ・Certification: CE / UKCA compliant For detailed specifications, please refer to the catalog.
Price information
<< Feel free to contact us. >> Contact form: https://rgl.co.jp/contact/
Price range
Delivery Time
P4
Applications/Examples of results
It is used for cooling water control in semiconductor manufacturing equipment, FPD manufacturing equipment, machine tools, and other devices.
Detailed information
-
Renewal Feature [1] Significantly Reduced Control Response Time
-
Renewal Feature [2] Energy Saving with Newly Added Standby Mode
-
Application
catalog（1）
Download All Catalogs
Company information
Since its establishment in 1974, Regal Joint has been engaged in the development of numerous original products and the provision of technology, guided by the motto of "Technology, Service, and Development." In particular, our technical expertise in the design and manufacturing of various devices and fittings in the fluid equipment sector, primarily focused on semiconductor manufacturing, as well as the development and manufacturing of vacuum equipment, is utilized across all cutting-edge fields, including chemistry, machinery, electricity, electronics, construction, and information processing. Additionally, based on the technology we have cultivated so far, we have launched a new business for the development and manufacturing of deodorization, sterilization, and water purification devices using ozone. As a company certified with the international standards ISO 9001 and ISO 14001, we will continue to promote the provision of high-quality, high-performance products and services that consider the environment.
