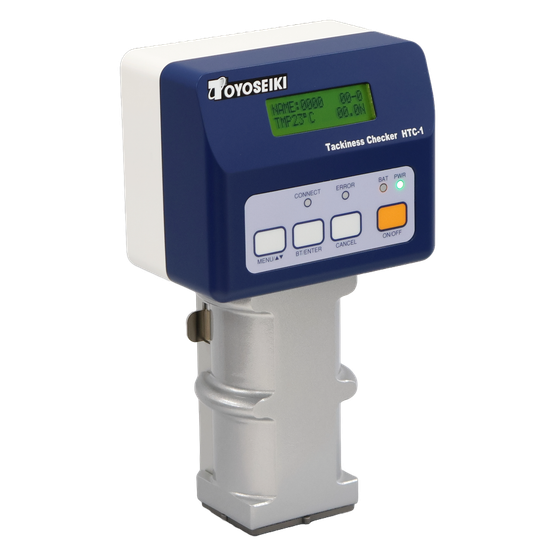

This is a portable adhesive testing machine that measures the adhesive properties (tack value) of non-sulfurized rubber, adhesive tapes, and the like. It allows for easy measurement of the adhesive strength of materials on-site.
In the molding process of tires and belts, where rubber components and reinforcing materials are adhered together in layers and vulcanized, it is very important to confirm the adhesiveness of the components in advance. This device has been developed as a tool to easily measure the adhesive strength of components on-site and can also be applied to measure the adhesive strength of tapes and similar materials. The ambient temperature at the site changes with the seasons, which also affects adhesiveness. The Tackiness Checker allows for easy measurement of adhesive strength on-site.
Inquire About This Product
Related Videos
basic information
■ It is compact, lightweight, and easy to carry (approximately 1.3kg). ■ Thickness measurements can be taken on-site. ■ Measurements can be easily taken by simply pressing the device against the measurement material (automatic start). ■ The ratchet mechanism rotates the contact pin with each measurement. ■ The cleaning mode allows for easy cleaning of the contact pin. ■ It is possible to measure the surface temperature of the measurement material, which affects adhesive strength (optional).
Price range
Delivery Time
Applications/Examples of results
For the evaluation of tackiness (tack value) of non-sulfurized rubber, adhesive tapes, etc.
catalog（1）
Download All Catalogs
News about this product（1）
Company information
Toyo Seiki Seisakusho Co., Ltd. is a comprehensive manufacturer of various material testing machines and environmental testing equipment targeting fields such as plastics, rubber, paints, paper, and textiles. Since its founding in 1934, we have been dedicated to "testing machines" and have supported our customers' research and development and quality control across various fields. We will continue to refine our technical capabilities and respond to our customers' needs. 【Product Development Timeline】 1955: Thermoplastic Resin Fluidity Tester 'Melt Indexer' 1960: Universal Material Testing Machine 'Strograph' 1963: Curing Tester 'Oscillating Disk Rheometer (ODR)' 1970: Mixing and Extrusion Testing Equipment 'Lab Plastmill' 1982: Capillary Rheometer 'Capillograph'
