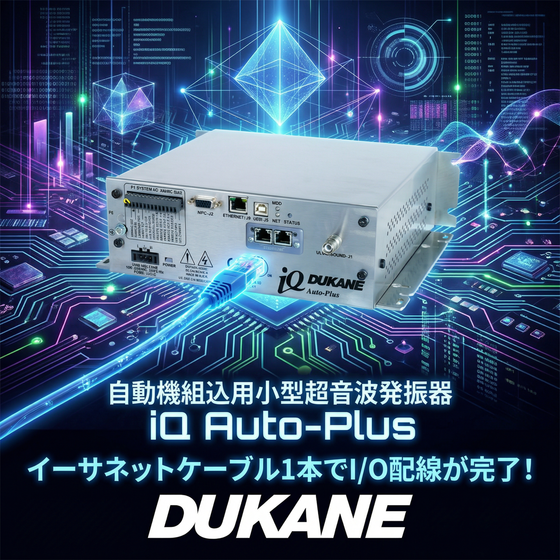

I/O wiring is completed with just one cable! Compact ultrasonic oscillator for automatic machines.
iQ Auto Plus
High-performance compact ultrasonic oscillator series "iQ-Auto Plus" that enables complicated I/O wiring with just one cable.
The iQ Auto Plus ultrasonic oscillator is designed for use in automotive parts, packaging, and other automated manufacturing lines. It simplifies the previously cumbersome wiring process during installation by using a single cable, allowing for complete control and monitoring from an external PLC. Additionally, by combining it with the patented MPC unit, it is possible to switch multiple probes (transducers) to oscillate with a single oscillator.
Inquire About This Product
basic information
Main features of iQ Auto Plus: - Control and monitoring from external PLCs using a single cable via Ethernet IP connection, USB connection, or RS232 connection. - Can switch between multiple probes using a single oscillator when connected to an MPC (Multipoint Probe Control) unit. - Equipped with patented output trigger functionality, allowing for an alternative to pressure trigger functionality, simplifying pressure units and reducing costs. - Supports high-speed cycle usage with full digital control and automatic frequency adjustment with DigiTrack. - Available in 20kHz/600W, 30kHz/600W, and 40kHz/600W.
Price range
P3
Delivery Time
P4
Applications/Examples of results
Multi-point spot welding and multi-point riveting of large automotive parts (door panels, bumpers), seam welding and spot welding in packaging machines, inline welding of small parts, etc.
Detailed information
Line up（12）
| Model number | overview |
|---|---|
| 20AP060-UF | 20kHz/600W 100-240VAC Time-Energy Control Ethernet/IP |
| 20AP060-UF-C4 | 20kHz/600W 100-240VAC Time-Energy Control CC-Link |
| 30AP060-UF | 30kHz/600W 100-240VAC Time-Energy Control Ethernet/IP |
| 30AP060-UF-C4 | 30kHz/600W 100-240VAC Time-Energy Control CC-Link |
| 30AP120-2F | 30kHz/1200W 200-240VAC Time-Energy Control Ethernet/IP |
| 30AP120-2F-C4 | 30kHz/1200W 200-240VAC Time-Energy Control CC-Link |
| 35AP060-UF | 35kHz/600W 100-240VAC Time-Energy Control Ethernet/IP |
| 35AP060-UF-C4 | 35kHz/600W 100-240VAC Time-Energy Control CC-Link |
| 35AP120-2F | 35kHz/1200W 200-240VAC Time-Energy Control Ethernet/IP |
| 35AP120-2F-C4 | 35kHz/1200W 200-240VAC Time-Energy Control CC-Link |
| 40AP060-UF | 40kHz/600W 100-240VAC Time-Energy Control Ethernet/IP |
| 40AP060-UF-C4 | 40kHz/600W 100-240VAC Time-Energy Control CC-Link |
