Introduction of powder activated carbon injection equipment into the silo! A case study of solutions by powder handling professionals is presented!!

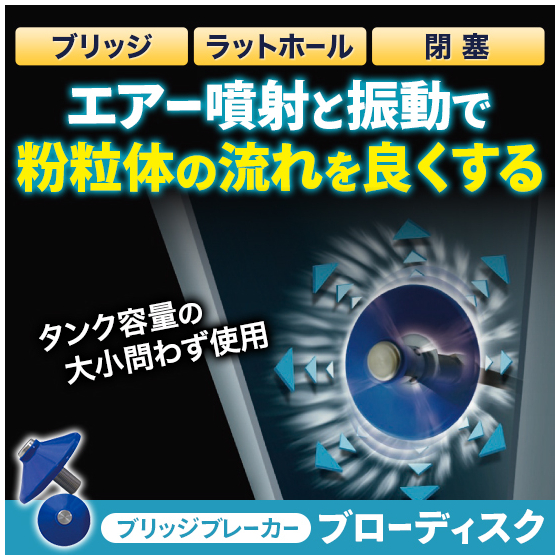

The introduction of this bridge prevention device has been implemented in the hopper section of the storage silo for powdered activated carbon. There is a vibrating discharge device at the bottom of the silo, and it is installed in the hopper section above it. Eight standard blow discs are installed, and the controller, which contains four solenoid valves, sequentially turns on the air in four locations, dividing the blow discs into pairs. The blow discs intermittently flow air along the inner surface of the silo. This air aeration, along with the vibrations generated by the silicone discs, ensures a reliable flow of the powder. It is possible to easily resolve issues related to the rat hole phenomenon and discharge failures caused by bridging in the powder. 【Overview】 ○ Silo diameter: 3000φ ○ Discharge rate: approximately 5 m³/hr ○ Chemical name, etc.: powdered activated carbon (moisture content below 5%, apparent specific gravity of about 0.2) *For more details, please contact us or download the catalog to view.
Inquire About This Product
basic information
【Specifications】 ○ Brody Disk BD-15S-B, 8 pieces ○ Controller C-SV4, 1 unit 【Key Points of This Equipment】 ■ The strength and durability of the elastic disk (silicone) are very important from the perspective of foreign matter contamination risk. The silicone disk of this equipment is exceptionally strong and durable. Once you use it, you will understand! ■ Control (how to aerate?) is crucial! We provide guidance on what should be done. A dedicated controller is also available. *For more details, please contact us or download and view the catalog.
Price information
For more details, please contact us.
Delivery Time
Applications/Examples of results
Please contact us.
catalog（4）
Download All Catalogs
