See the Moment! Visualize internal product behavior.

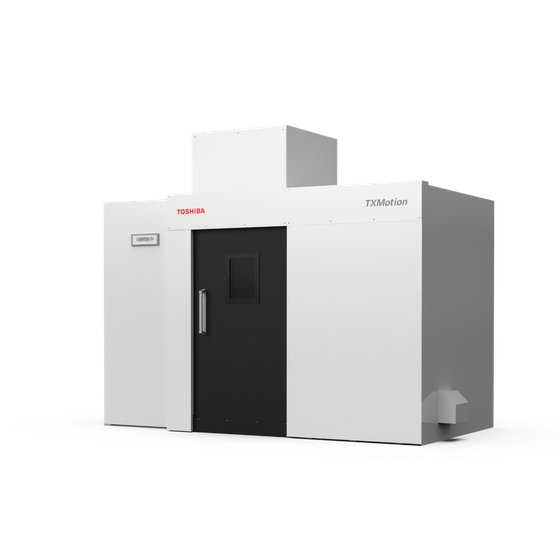

TXMotion is an inspection system that combines X-rays with high-speed cameras to visualize the dynamic behavior inside products—previously visible only externally—in real time and with high precision. For drop tests and high-speed filming, there is no need to change the exterior to transparent materials. You can observe the movement of internal structures using the actual materials themselves. This enables highly reliable verification. 【Features】 ○ See the “inside” of high-speed motion! Observe the movement inside objects in real time, something conventional X-ray inspection devices could not capture. ○ High-speed imaging up to approximately 20,000 frames per second. Combining a high-sensitivity, fast-response X-ray sensor with a high-speed camera clearly records even minute and instantaneous movements. ○ No material changes required. Inspect actual products as-is. Eliminates the hassle of modifying exteriors to transparent materials, enabling inspection under actual material conditions. This allows for more realistic evaluation. ○ Customization available We propose device customizations and optional mechanisms tailored to your specific imaging targets. For details, please contact us or download the catalog. Translated with DeepL.com (free version)
Inquire About This Product
Related Videos
basic information
【【Features】 ○Combined CT Scanner & High-Speed X-Ray System Enables 3D analysis and evaluation when paired with a micro-CT device. Acquires multi-faceted static and dynamic internal information. ○Integration with Environmental Testing Visualizes internal behavior under actual usage conditions when combined with environmental testing equipment for vibration, temperature, etc. ○Retrofit to Existing Equipment Can be added to existing X-ray inspection systems. Extends functionality while utilizing existing infrastructure. ○Synchronized Multi-Camera Imaging Simultaneously captures external appearance images and X-ray inspection images. Parallel observation of external and internal behavior enables deeper analysis. ●For details, please inquire or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
【Applications】 ○ Observation of internal behavior during precision equipment drops (e.g., deformation of circuit boards and components in mobile phones, digital cameras) ○ Damage process analysis of electrical/electronic components, verification of mechanical movement behavior (e.g., relay contacts) ○ Observation of fluid/powder flow, welding phenomena, etc. ● For details, please contact us or download the catalog.
catalog（1）
Download All Catalogs
Company information
As of April 25, the company name has been changed. [Formerly: Toshiba IT Control Systems Corporation] Our company provides design, manufacturing, sales, and services of X-ray non-destructive testing systems in various fields both domestically and internationally. We respond to the diverse needs of our customers, including automotive equipment, consumer electronics, and research institutions, and work on solving their challenges. By leveraging the latest technology and extensive experience, we continue to provide excellent solutions to meet our customers' challenges.
