Successfully eliminated loosening permanently with safety bolts and nuts! Passed JQA high-speed vibration loosening test!

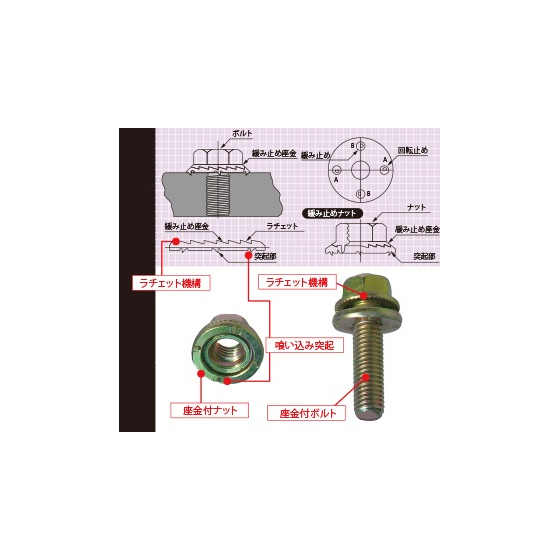

The "Yurumanzo (W-V-LOCK)" is a safety bolt and nut that successfully eliminates loosening permanently by adopting a ratchet mechanism between the bolt, nut, and washer, and further incorporating protrusions on the bottom surface of the washer that bite into the workpiece. All five units tested in the vibration loosening comparison test conducted by the Japan Quality Assurance Organization passed without loosening for over 17 minutes. 【Features】 ■ The bolt and washer are connected using a ratchet system, with several protrusions on one side of the seating surface. ■ The protrusions bite into the fastened object in a wedge shape, preventing the washer from rotating and providing a loosening prevention effect for the entire screw. ■ Does not loosen even under strong vibrations or long-term use. ■ A loosening prevention mechanism with high safety and durability. ■ Patent obtained. *For more details, please request materials or view the PDF data available for download.
Inquire About This Product
basic information
"Outstanding performance in vibration loosening tests according to NAS3350 standards" ○ High-speed screw loosening test conditions: (100,000 cycles, 17 minutes) ○ Frequency: 1,780 rpm ○ Excitation table: 11 mm ○ Impact stroke: 19 mm ○ Vibration direction: Perpendicular to the bolt axis ○ No torque reduction even with the return torque after testing ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
