Avoid unexpected misimplementations! We will inspect at the C and R individual item level.

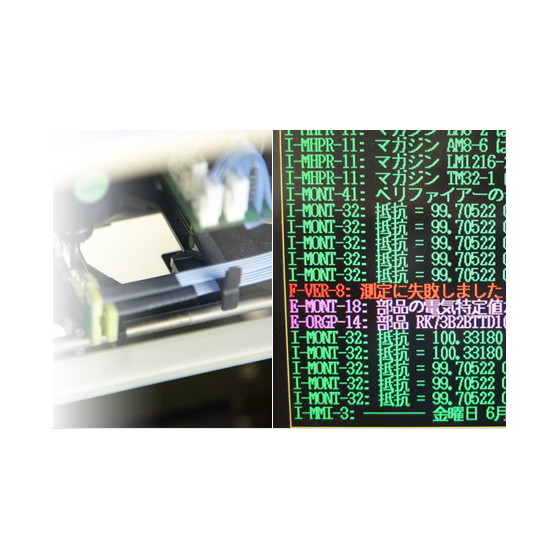

At the K-ALL Mounter (MYDATA), electrical verification of chip components (CR) is possible during implementation. In prototype implementations, there are many cases where the board is designed for mounters even if it's just one piece. Since it will be implemented as a single piece, there is a risk of incorrect components being mixed in, especially if the supplied parts are re-taped from loose components. Our MYDATA mounter can perform electrical verification of components, which helps prevent defects caused by incorrect parts. 【Features】 ○ Avoid unexpected misplacements ○ Inspection at the individual level for C and R ○ Prevent defects caused by incorrect components For more details, please contact us or download the catalog.
Inquire About This Product
basic information
【Case Study】 [For a single-sided board, the components will be supplied as loose parts, but we want to perform mounting.] ○ Due to the involvement of the Ministry of Defense, loose parts and reel-cut parts will be automatically inserted using MYDATA. * The MYDATA device can perform mounting while conducting electrical verification (C, R, D, TR) and also submits measured data. * As a result of the electrical verification, it was confirmed that the delivered items and part numbers are genuine, and a multiplier discrepancy that would normally go undetected was found. All errors occurred with the parts delivered by the trading company. This prevents defects in advance and earns gratitude from customers and parts suppliers. [We would also like electrical (power-on) testing after mounting.] ○ In addition to mounting (soldering and appearance) inspection, we conduct electrical (power-on) testing such as tester checks, voltage measurements, and operational confirmations to deliver high-quality products. ○ Even if defects occur, we promptly investigate the cause and implement countermeasures to ensure delivery as scheduled. * Prior coordination is necessary for electrical testing. There may be a need for a briefing on testing methods and provision of equipment and jigs. * Since the circuit designer is an internal regular member, we are implementing quick initiatives and early resolutions. ● For more details, please contact us or download the catalog.
Price information
Please contact us.
Delivery Time
※Please contact us.
Applications/Examples of results
For more details, please contact us or download the catalog.
catalog（1）
Download All Catalogs
Company information
Our company was founded in 1990 with four members. At the time of our establishment, we had no equipment, and each of us primarily worked on renovation projects and manual assembly with just a soldering iron. As the miniaturization of components progressed and the number of prototype and development projects involving BGA increased, so did the demand for BGA reballing and jumper wiring. Therefore, we introduced BGA rework equipment before implementing basic devices such as reflow ovens. Since then, we have conducted extensive research in technology alongside numerous customers, and we take pride in having established a level of reliability that satisfies our clients, not only for BGA but also for LGA, POP, underfill applications, and 0402 chip mounting. Other features of our company include the establishment of a RoHS-compliant factory, maintaining a constant inventory, and providing mounting support for cut parts (My Data), which differentiates us from other companies in the same industry. It is our mission to respond to all QCD (Quality, Cost, Delivery) requirements necessary for development and prototype assembly, and we are committed to providing technical support with customer satisfaction as our top priority.
