Even with heavy loads, the towing caster has a light turning ability and excellent durability!!! Maximum load capacity of 600 daN (612.0 kgf).
Features ☆ The use of bearings in the swivel section improves swivel performance. By incorporating a thrust bearing in the upper part of the swivel section and a tapered roller bearing in the lower part, smooth swivel performance and a maximum load of 600 daN (612.0 kgf) are achieved even under heavy loads. The design also minimizes the decline in swivel performance over time. Compared to our heavy-load swivel fitting JM-200, the starting force for swiveling is reduced by approximately 42%. ☆ Reinforced components for towing. The shaft and nut that secure the wheel to the fitting, as well as the center bolt and nut of the swivel section, are designed with a locking pin to prevent loosening.
Inquire About This Product
basic information

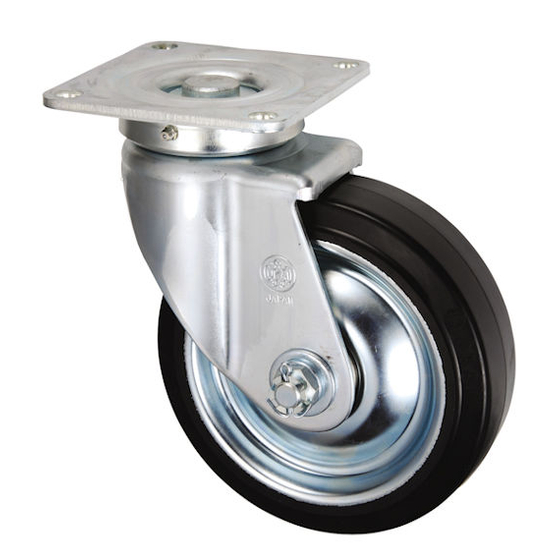

JHW Type (Towing Swivel Caster [Towing Swivel Caster]) With swivel bearing ☆Size (mm)…150, 200 ☆Load capacity (daN)…250~600 ☆Compatible wheels…Aluminum rubber, aluminum urethane, steel plate urethane, steel plate rubber, high resilience rubber ☆The shaft is equipped with a locking split pin. Towing Swivel Caster Ukai Caster / UKAI CASTERS
Price range
Delivery Time
※The delivery time may vary depending on the quantity, so please feel free to contact us.
Applications/Examples of results
To the caster of the towing cart.
Detailed information
-
Swivel caster with brake (φ150 aluminum urethane wheel) RFHW-150
-
Pulling swivel caster (φ150 steel plate urethane wheel) RFJHW-150
-
Pulling swivel caster (φ200 aluminum rubber wheel) RGJHW-200
-
Pulling swivel caster (φ200 rubber wheel) SHVJHW-200
Line up（5）
| Model number | overview |
|---|---|
| RGJHW-150 / RGJHW-200 | Swivel caster for towing (aluminum with rubber wheels) |
| RJHW-150 | Swivel caster for towing (aluminum with urethane wheels) |
| RFJHW-150 / RFJHW-200 | Swivel caster for towing (steel with urethane wheels) |
| SVJHW-200 | Swivel caster for towing (rubber wheels) |
| SHVJHW-200 | Swivel caster for towing (high resilience rubber wheels) |
