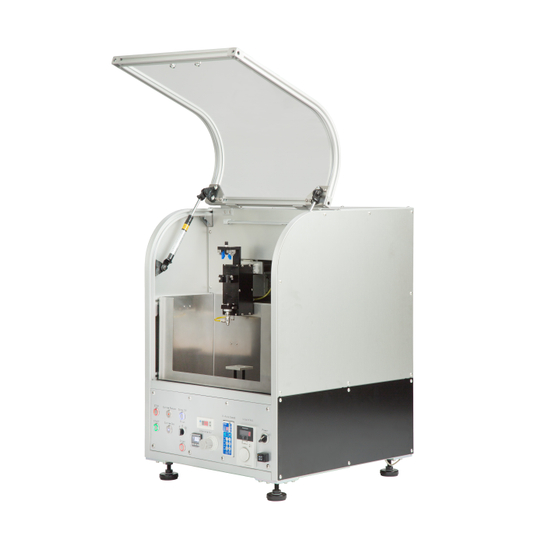

[High Precision・Ultra Compact] Desktop Spray Coater 'API-nano' (Sales have been suspended.)
Successor model to be released soon.
Thin film formation with a small amount of coating solution! Ultra-compact size for tabletop use! High flow rate reproducibility! [Model limited to educational institutions such as universities]
The "API-nano" is a tabletop spray coater that achieves an ultra-compact size of approximately 50cm square while maintaining a discharge flow rate reproducibility of around ±2%. With just about 5mL of coating solution, coating tests can be conducted, minimizing the amount of expensive coating solution used. Additionally, it is offered at an affordable price, making it a model specifically for research and development institutions such as universities with limited budgets. *Please note that it is not available for sale to general companies. 【Features】 ■ Coating area is 50mm square, ideal for coating small devices like biochips ■ High flow rate reproducibility comparable to mass production machines ■ Intuitive and easy-to-use operation system ■ Easy maintenance *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Inquire About This Product
basic information
【Specifications】 Board size: 50×50mm Nozzle height: 30mm, 50mm, 80mm Scan speed: Max. 300mm/sec Coating liquid flow rate: 3–20mL/min Flow rate reproducibility: Average ±2% Atomization pressure: 500kPa External dimensions (W×L×H): 480×520×540mm Weight: 40kg *For more details, please refer to the catalog. Feel free to contact us with any inquiries.
Price range
P5
Delivery Time
Applications/Examples of results
For more details, please refer to the catalog. Feel free to contact us as well.
Company information
We are a manufacturer specializing in spray coaters for the micro-dispensing field. Based on our extensive experience in application and process development, we aim to achieve high-quality thin film coatings that are impossible with conventional spray coaters. We have a proven track record in anti-fingerprint coatings for touch panels, AR/AG coatings, and electrode material coatings for fuel cells/MEAs. If you have technical challenges with your current coatings, please feel free to contact us. We have a mass production system permanently installed in our technology lab, which can also be used for customer prototypes and process development (for substrate sizes within 600mm x 400mm).
