We have received the Precision Engineering Society's "Monozukuri Award." Supplying high-pressure water with a small amount of water. Achieving a constant 6 MPa! For precise ultra-high pressure type, high-pressure supply with a small amount of water.

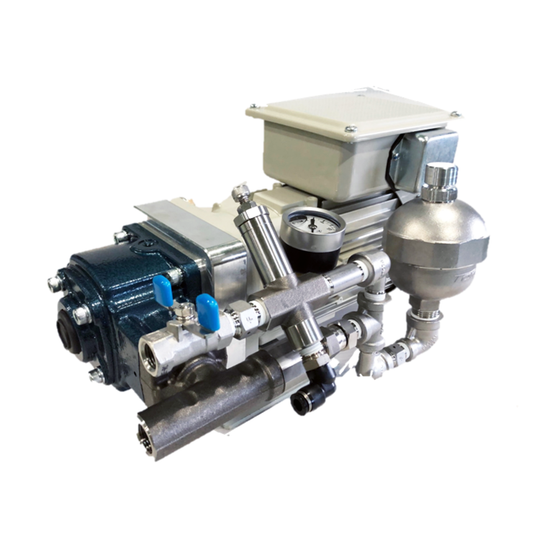

The "AGM1001" is a compact-sized ultra-small high-pressure pump that supplies high-pressure water with a small amount of water, achieving a regular pressure of 6MPa. 【Features】 ○ Compact size of L258mm × W221mm × H141mm ○ Regular 6MPa high-pressure water obtainable with a small amount of clean water at 100V 50W ○ Lightweight at 6.75Kg, suitable for small spaces ○ Equipped with a parameter that allows changing the pump rotation ○ Two-speed operation possible with one switch, from set rotation to high-speed rotation ○ Brushless motor that is not affected by Hz (Hertz) ○ Oil-free (no lubrication) pump ○ Ceramic materials used for the plunger ○ Two models available with reduction ratios of 1/5 and 1/9 ○ Standard equipped with an accumulator to prevent pulsation *For more details, please download the catalog or contact us.
Inquire About This Product
basic information
【Specifications】 ○Model AGM1001-5 AGM1001-9 ○Pressure Operating 6 MPa ○Pump Oil-less single plunger ceramic pump, SUS316 ○Water Supply Rate (1) Reduction ratio 1:5, Pump speed 12-480 rpm, Variable speed Maximum 240 ml/min (2) Reduction ratio 1:9, Pump speed 7-266 rpm, Variable speed Maximum 130 ml/min ○Motor BLA550AB-5, Single phase 100V 50W, 50-60Hz, No conversion needed, Brushless ○Dimensions L258mm × W221mm × H141mm (Pump body) ○Noise Level At 6 MPa, approximately 42 dB ○Weight 6.75 kg *For more details, please download the catalog or contact us.
Price range
Delivery Time
Applications/Examples of results
Disinfection, mist device, static electricity, medical, agriculture and livestock industry, food
