Amplitude level and timer can be set digitally! Active in research and development, quality control, product inspection, etc.

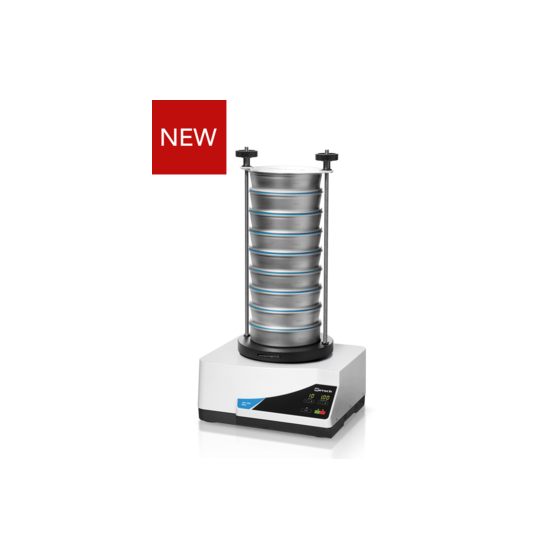

The electromagnetic sieve shaker "AS200 series" is used in research and development, quality control of raw materials, intermediates, and final products, as well as in product inspection departments. It employs an electromagnetic drive that allows for amplitude adjustment, making it suitable for classifying various types of samples. This sieve shaker can effectively separate materials even in a short time. The 'AS200 Basic' model offers excellent quality and reliability at an affordable price. The amplitude level and timer can be set digitally. 【Features】 ■ Amplitude level and timer are digitally displayed ■ Compatible with both dry and wet sieving ■ Efficient separation in a short time ■ Effective electromagnetic shaking ■ Three-dimensional effects of vertical, horizontal, and twisting movements allow samples to evenly shake across the entire mesh. ■ Digital setting of conditions (amplitude level, timer) ■ Optionally, a clamp unit type A can be added to the Basic model ■ Compatible with the classification evaluation software EasySieve ■ Maintenance-free *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■ Nature of the sample to be tested: Powder, bulk material, suspension ■ Measurement range: 20 µm - 25 mm ■ Classification method: Three-dimensional motion ■ Maximum input amount: 3 kg ■ Number of classifications: 9 / 17 ■ Maximum sieve frame weight: 4 kg ■ Vibration amplitude: digital, 1 - 100% (0 - 3 mm) ■ Amplitude control: - ■ Time display: Digital, 1 - 99 minutes ■ Dry/wet classification: Available ■ USB interface: - ■ Calibration certificate: - ■ Usable sieve diameters: 100 mm / 150 mm / 200 mm / 203 mm (8") ■ Maximum sieve height: 510 mm ■ Clamp unit: Type B, Type A supports both dry and wet classification ■ Protection rating: IP 54 / IP 20 ■ Voltage: 100V-240V, 50/60Hz ■ Power supply: Single-phase ■ W x H x D: 417 x 212 x 384 mm ■ Body weight: ~ 35 kg ■ Standards: CE *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Screening and classification 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products, ■ Geology / Metallurgy, Metallurgy, Construction Materials, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food 【Application Examples】 ■ Coffee, Cement clinker, Nuts, Plastics, Fillers, Chemicals, ■ Soil, Flour, Construction materials, Sand, Seeds, Grains, Powdered detergents, Fertilizers, Iron powder, Minerals, ... *For more details, please refer to the PDF document or feel free to contact us.
