Excellent operability! Automatic adjustment even when load or voltage changes due to oscillation motion control!

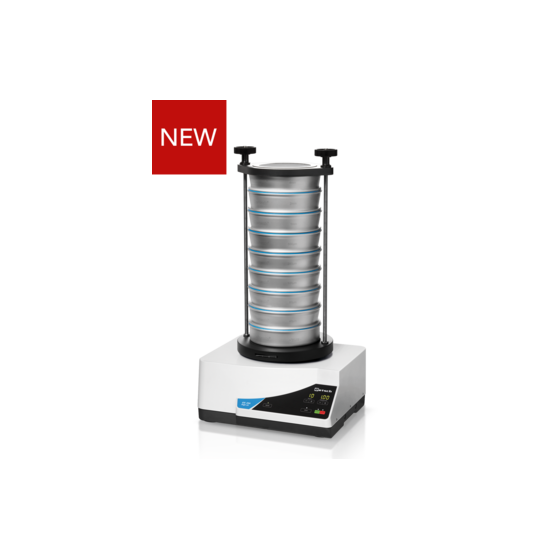

The electromagnetic sieve shaker "AS200 series" employs an adjustable amplitude electromagnetic drive, making it suitable for classifying various types of samples. It is a sieve shaker that can effectively separate samples even in a short time. The 'AS200 Digit cA' controls the shaking motion with a microprocessor, allowing for automatic adjustment even when the load or voltage changes. Both the amplitude and timer can be set digitally. Additionally, it features an interval function that reduces sample clogging. 【Features】 ■ Amplitude control by microprocessor ■ Compatible with both dry and wet sieving ■ Efficient separation in a short time ■ Effective electromagnetic shaking ■ Three-dimensional effects of vertical, horizontal, and twisting classification, allowing samples to shake evenly across the entire mesh. ■ Maintenance-free ■ Analog adjustment of amplitude and operating time ■ Digital display of shaking width and timer *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■Nature of the sample to be tested: Powder, bulk material, suspension ■Measurement range: 20 µm - 25 mm ■Classification method: Three-dimensional motion ■Maximum input amount: 3 kg ■Number of classifications: 9 / 17 ■Maximum sieve frame weight: 4 kg ■Vibration amplitude: Digital, 0.2 - 3.0 mm ■Amplitude control: Yes ■Time display: Digital, 1 - 99 minutes ■Interval mode: 10 s ■SOP setting available: 1 ■USB interface: - ■Calibration certificate: - ■Usable sieve diameters: 100 mm / 150 mm / 200 mm / 203 mm (8") ■Maximum sieve height: 510 mm ■Clamp unit: Type B, Type A supports both dry and wet conditions ■Protection rating: IP 54 / IP 20 ■Voltage: 100V-240V, 50/60Hz ■Power supply: Single phase ■W x H x D: 417 x 212 x 384 mm ■Body weight: ~ 35 kg ■Standards: CE *For more details, please refer to the PDF document or feel free to contact us.
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Screening and classification 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products, ■ Geology / Metallurgy, Materials Science, Construction Materials, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food 【Application Examples】 ■ Coffee, Cement clinker, Nuts, Plastics, Fillers, Chemicals, ■ Soil, Flour, Construction materials, Sand, Seeds, Grains, Powdered detergents, Fertilizers, Iron powder, Minerals, ... *For more details, please refer to the PDF document or feel free to contact us.
