Combination of reciprocal rotational motion and tapping! Achieving efficient sifting in a short time!

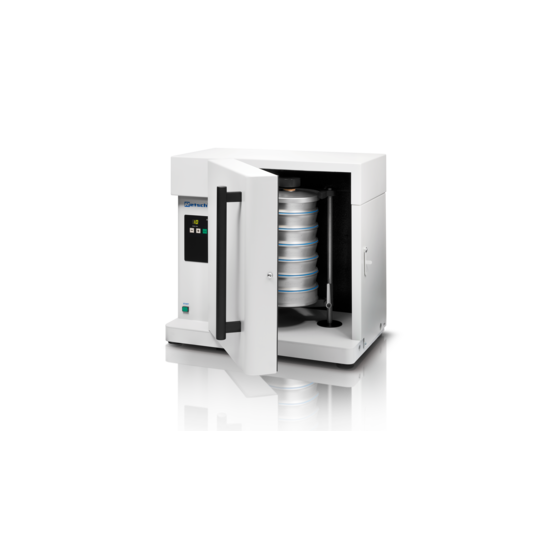

The "AS200tap" is a tap-type sieve shaker that is standardized for the classification of materials such as activated carbon, abrasives, iron powder, spices, and diamonds. The mechanical action of this product is two-dimensional. It combines a horizontal reciprocating motion of 280 times per minute with a tapping motion from above at 150 times per minute, making it easier for samples to pass through the sieve mesh. Since the horizontal rotation speed and tapping frequency are not affected by the power supply and frequency, you can obtain the same experimental results no matter where in the world you use it. 【Features】 ■ Combination of reciprocating motion and tapping ■ Maintenance-free ■ Suitable for dry classification ■ Efficient sieving in a short time ■ Sieve frame size up to 350 mm ■ Digital setting of operating time ■ Easy to operate with an ergonomic design ■ Ideal for sample monitoring in compliance with ISO9001 and other international standards *For more details, please refer to the PDF document or feel free to contact us.
Inquire About This Product
Related Videos
basic information
【Specifications】 ■ Sample properties: Powder, bulk material ■ Measurement range: 20 µm - 25 mm ■ Classification method: Combination of rotary reciprocating motion and tapping ■ Maximum input amount: 3 kg ■ Number of classifications: 7 / 13 ■ Maximum sieve frame weight: 6 kg ■ Nozzle rotation speed: 280 rpm ■ Tapping frequency: 150 rpm ■ Time display: Digital, 1 - 99 minutes ■ Dry classification: Yes ■ Wet classification: No ■ Serial interface: Yes ■ Calibration certificate: No ■ Usable sieve diameter: 200 mm / 203 mm (8") ■ Maximum sieve height: 380 mm ■ Protection rating: IP 50 ■ Voltage: 100V-240V, 50/60Hz ■ Power supply: Single phase ■ Power consumption: 180 W ■ W x H x D: 700 x 640 x 450 mm / With soundproof cover: 700 x 670 x 520 mm ■ Body weight: Without soundproof cover 68 kg / With soundproof cover 92 kg *For more details, please refer to the PDF document or feel free to contact us.*
Price information
-
Delivery Time
Applications/Examples of results
【Purpose】 ■ Screening and classification 【Fields】 ■ Engineering / Electronics, Glass / Ceramics, Bio, Chemicals / Chemical Products, ■ Geology / Metallurgy, Materials for Construction, Environment / Recycling, Pharmaceuticals / Drugs, Agriculture, Food 【Application Examples】 ■ Cement, Diamond, Charcoal, Coal, Abrasives, Spices, ... *For more details, please refer to the PDF document or feel free to contact us.
