Does not damage the waterproof layer! Lightweight at approximately 4kg/m2! This is a 'lightweight solar foundation for flat roofs' that accommodates various waterproofing and various substrates.
The linked disk ADC is a solar foundation that can be utilized when installing solar panels on flat roofs. Its feature is a mechanism that integrates with the waterproof layer, making "the foundation itself a waterproof layer." Therefore, there is no concern about "whether the installation of solar panels will damage the waterproofing" on flat roofs. Moreover, unlike the so-called placed foundation type, it is lightweight, weighing only about 4 kg/m² (this value refers only to the foundation part). As a result, it enables the installation of solar panels on various flat roofs that were previously deemed unsuitable for installation. It is also fine if there is a slight roof slope. It accommodates diverse roof substrates. Additionally, since it can be constructed in a dry manner, project management is smooth. The waterproofing contractor on the rooftop will handle the foundation installation, making it easy for electrical work to simply involve placing the panels and performing wiring tasks. *For more details, please refer to the PDF materials or feel free to contact us.*
Inquire About This Product
basic information

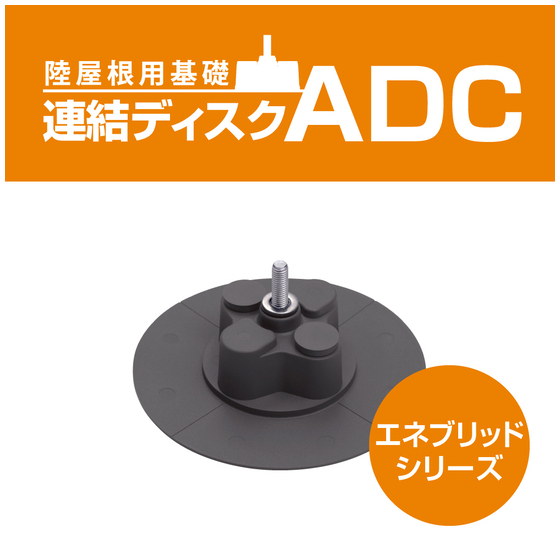

(Name) Link Disk ADC (Overview) Foundation for waterproof integrated solar panel mounting frames for flat roofs (Dimensions) Fixing part: Diameter 90mm, Patch part: Diameter 180mm (Material) Surface: Soft PVC resin, Core material: Aluminum die-cast (Specification lineup) EB Disk specification / EB Base rail specification (Roof substrate compatible for installation) RC substrate, Deck concrete substrate, ALC substrate, Deck plate substrate *Installation feasibility may vary depending on the building's location and other conditions. *For more details, please refer to the PDF document or feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Uses】 ■Educational facilities ■Medical and welfare facilities ■Public facilities ■Residential buildings and apartments ■Factories *For more details, please refer to the PDF document or feel free to contact us.
catalog（7）
Download All Catalogs
![[Example] Achieving rooftop solar installation on a flat roof with deck plate substrate using the "Connected Disk ADC."](https://image.mono.ipros.com/public/catalog/image/01/820/648924/IPROS62624535353655034885.jpeg?w=120&h=170)
Company information
Akiyamade Co., Ltd. is engaged in the development, manufacturing, and sales of PVC resin-based sheet waterproofing. We are well-known for our "mechanical fixing method," which secures PVC sheet waterproofing to roofs and floors using induction heating equipment. In addition to rooftop waterproofing, we also offer "waterproof integrated solar foundations," which allow for the installation of solar panels on flat roofs without concerns about waterproofing. As the demand for renewable energy increases, we are expanding our product offerings that are useful for solar installations on rooftops.
