Achieve precise and fast process control while saving energy

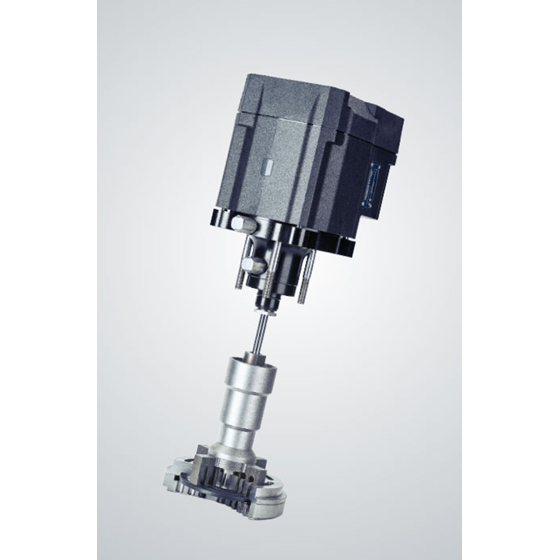

Many reciprocating compressors need to deliver less than their rated capacity, and this typically requires excess compressed gas to be returned to the suction side via a recycle valve. When this happens, the energy used to compress this recycled gas is wasted. HOERBIGER’s eHydroCOM is an all-electric stepless volume control system available today for reciprocating compressors. The fully standardized, 100% oil-free system is the ideal way to achieve and maintain stable capacity control of dynamic processes. Precise capacity control eHydroCOM continuously adjusts the compressor’s delivery rate to match the amount required by the downstream process. Precise control of the suction valves eliminates the need for a bypass valve. This not only saves energy and reduces CO2 emissions, but also improves your process controls at the same time.
Inquire About This Product
basic information
eHydroCOM HD at a glance: Actuator layout: Single magnetic coil stack Application limits: Up to 2.5kN unloading foce, 800rpm, 70bara suction pressure Application range: Majority of applications IP: Actuator: IP65 FPSU: IP65 Actuator height / weight: 267mm / 20.5kg (NACE 23.5kg) EX-certificates: ATEX Zone 1 IIC Power supply: Actuator: 60VDC FPSU input: 3 x 400VAC Electrical connections: Terminals Maintenance intervals: <400rpm: 32,000 operating hours 400 to 800rpm: 24,000 operating hours Standardization: Same actuator for all stages / compressors Automatic clearance compensation: Yes Automatic wear compensation while: compressor runs: Yes Separate enclosure required for FPSU / ePU: No
Price range
Delivery Time
Applications/Examples of results
eHydroCOM enables the reduction of energy consumption in compressors and improves process control. The simple and reliable capacity control offered by this product is expected to lead to energy savings.
