5W AC adapter with wall mount, integrated, compact and lightweight, PSE certified.
This is a compact 5W power supply and switching AC adapter with a wall-mounted type featuring a PSE mark.

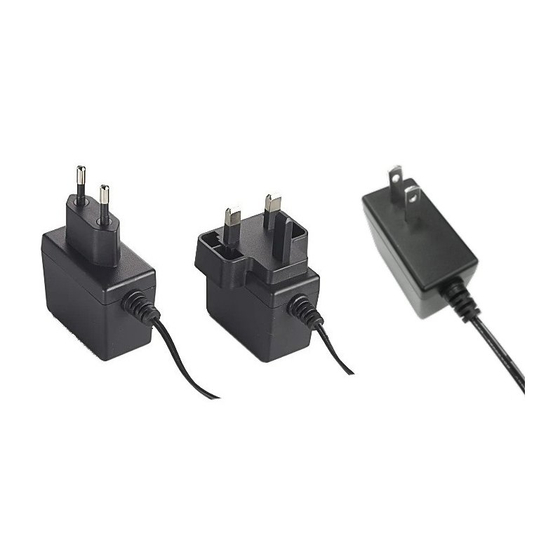

5W AC adapter, compact and lightweight adapter with wall mount, ATS005T.
Are you looking for an AC adapter? This is an external power supply with a 5W PSE mark (Electrical Appliance and Material Safety Law). The output includes options like DC12V0.6A and DC24V0.25A. It is a compact, lightweight, and popular wall-mounted type. This AC adapter complies with the international safety standard IEC62368-1. Please consider it for connecting to the electronic devices you are developing or the electrical products you plan to import. Feel free to consult us about connecting the DC plug and secondary side connector specified by you. We prioritize reliability and are equipped with various protection circuits such as OVP and SCP. We ensure long-term stable supply, conduct thorough inspections, provide consistent staff support, offer after-sales support, and provide a long-term warranty. 【Features】 ■ PSE mark (Electrical Appliance and Material Safety Law) ■ Complies with IEC62368-1 ■ DC plug connection as per your request ■ Long-term stable supply ■ Thorough inspections conducted ■ Long-term warranty of 1 year *For more details, please feel free to contact us.
Inquire About This Product
basic information
【Overview】 ■ AC Adapter: Wall-mounted type ■ Input Voltage: 100–240VAC ■ Frequency: 50–60Hz ■ Output Voltage: As described below ■ Operating Temperature: -20–40℃ ■ Operating Humidity: 20–80% ■ Storage Temperature: -20–80°C ■ Storage Humidity: 10–90% (No water droplets) ■ MTBF: 300,000 hours (calculated value) This AC adapter is suitable for external power supply of electronic devices (compliant with IEC62368-1). Equipped with PSE mark. Available from small quantities to mass production. Stock available for short delivery times. Extensive track record with major companies. Dedicated staff provide consistent support from consultation, quotation, development, manufacturing, delivery, to after-sales support. * The status of safety standard acquisition may vary. Please check with us for the latest information. * For more details, please feel free to contact us.
Price range
Delivery Time
Applications/Examples of results
【Applications】 General: Communication devices, Wi-Fi equipment, PC peripherals, refrigerators, water purifiers, leisure equipment, sports equipment, seasonal decorations, etc. Industrial: Store ordering terminals, commercial printers, security cameras, broadcasting equipment, network devices, advertising signs, etc. Medical: Blood pressure monitors, electrocardiograms, ultrasound devices, in-hospital cameras, laser equipment, X-ray devices, suction devices, treadmills, etc. *Please feel free to contact us for more details. We also accommodate connections for specified plugs, changes in wire lengths, center negative (reverse polarity) configurations, etc. (Large capacity connectors, high mating connectors, EIAJ plugs, Canon connectors, XLR, Hirose, SMK, DIN, mis-mating prevention plugs, pull-out prevention locking types, screw types, and more) For labeling with your logo, mounting specified parts, reliability test data, short delivery times, small lots, custom orders, new developments, large-scale production, and other inquiries related to AC adapters, please feel free to consult us.
Line up（10）
| Model number | overview |
|---|---|
| ATS005T-W033□ | Output voltage: 3.3VDC Output current: 1.50A Maximum output: 4.95W |
| ATS005T-W050□ | Output voltage: 5.0VDC Output current: 1.00A Maximum output: 5.00W |
| ATS005T-W051□ | Output voltage: 5.0VDC Output current: 1.50A Maximum output: 7.50W |
| ATS005T-W060□ | Output voltage: 5.9VDC Output current: 1.20A Maximum output: 7.08W |
| ATS005T-W075□ | Output voltage: 7.5VDC Output current: 1.00A Maximum output: 7.50W |
| ATS005T-W090□ | Output voltage: 9.0VDC Output current: 0.67A Maximum output: 6.03W |
| ATS005T-W120□ | Output voltage: 12.0VDC Output current: 0.60A Maximum output: 7.20W |
| ATS005T-W150□ | Output voltage: 15.0VDC Output current: 0.50A Maximum output: 7.50W |
| ATS005T-W180□ | Output voltage: 18.0VDC Output current: 0.33A Maximum output: 5.94W |
| ATS005T-W240□ | Output voltage: 24.0VDC Output current: 0.25A Maximum output: 6.00W |
